Overview

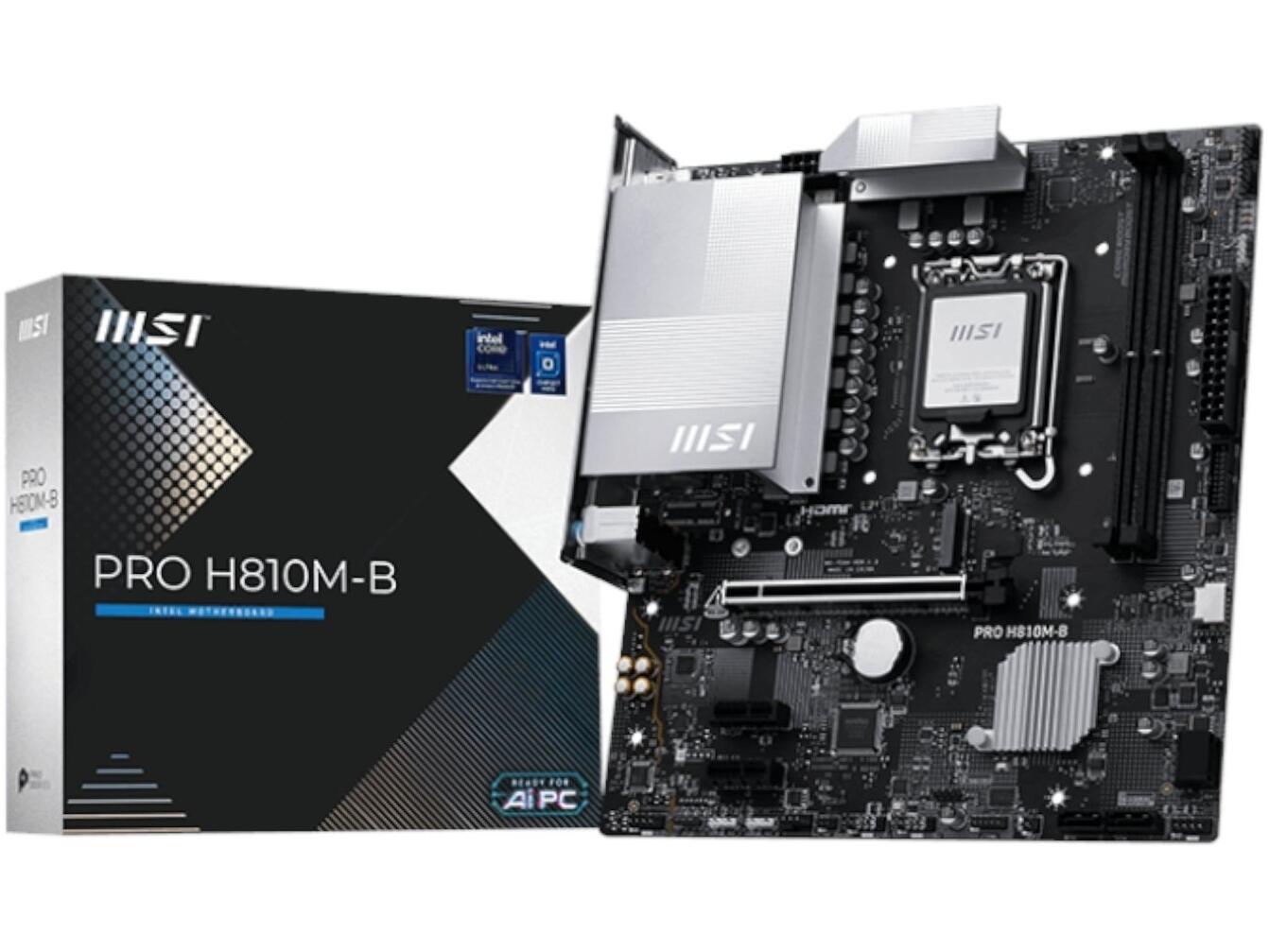

MSI H810M-B PRO DDR5 LGA1851 Micro-ATX Motherboard
Boost your productivity and performance with the MSI H810M-B PRO LGA1851 M-ATX DDR5 Motherboard, a high-performance platform designed for professionals, creators, and DIY PC enthusiasts. Supporting the latest Intel Core Ultra Series 2 processors, this Micro-ATX motherboard combines sleek aesthetics with cutting-edge technology. With PCIe 5.0 support and DDR5 memory capabilities up to 6400 MT/s, it handles multitasking, workstations, and light gaming with ease. Its silver color scheme fits effortlessly into a variety of chassis designs.

Description

The MSI H810M-B PRO offers easy installation with EZ PCIe Clip II and EZ M.2 Clip II, a pre-installed I/O shield for precise setup, and reinforced PCIe steel slots for durability. Core Boost and Memory Boost technologies deliver stable power and high-speed memory performance. Advanced cooling, including Frozr AI Cooling and Cooling Wizard, maintains quiet, efficient operation. High-speed connectivity options include 2.5G LAN, USB 10Gbps Type-C, and Lightning Gen 4 M.2 storage. Studio-grade 7.1 HD audio and customizable RGB lighting complete a feature-rich motherboard ideal for building or upgrading a professional-grade PC.

Features

Processor and Memory Support

• Compatible with Intel Core Ultra Series 2 processors for the LGA 1851 socket
• Supports DDR5 dual-channel memory up to 6400 MT/s
• Memory Boost technology ensures pure data signals for stability and compatibility

Expansion and Storage Options

• PCIe 5.0 x16 slot for next-generation graphics cards
• Two PCIe 4.0 x1 slots for additional expansion cards
• Lightning Gen 4 M.2 slot for high-speed NVMe storage
• Four SATA 6G ports for traditional storage devices

Audio and Networking

• Audio Boost delivers immersive 7.1 HD sound
• Realtek 2.5Gbps LAN provides fast and stable network connections
• HDMI and DisplayPort outputs support high-definition displays

Cooling and Installation Ease

• Frozr AI Cooling and Cooling Wizard adjust fan speeds automatically
• EZ M.2 Clip II and EZ PCIe Clip II simplify component installation
• Pre-installed I/O shield and reinforced PCIe steel slots ensure durability

USB and Connectivity

• USB 2.0, USB 5Gbps Type-A, and USB 10Gbps Type-C ports
• Lightning-fast data transfer and peripheral support for professional setups

Box Contents

• MSI H810M-B PRO LGA1851 M-ATX DDR5 Motherboard
• EZ M.2 Clip II and remover
• SATA cable
• Quick Install Guide

Specifications

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx-computers.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	PROH810M-B
Chipset	INTEL H810
CPU	Supports Intel Core Ultra Processors (Series 2)
	LGA 1851
Memory	2x DDR5 UDIMM, Maximum Memory Capacity 128GB
	Memory Support DDR5 6400 - 4800 (JEDEC) MT/s
	Max. overclocking frequency:
	1DPC 1R Max speed up to 6400 MT/s
	1DPC 2R Max speed up to 6400 MT/s
	Supports Intel POR Speed and JEDEC Speed
	Supports Intel XMP 3.0
	Supports Dual-Controller Dual-Channel mode
	Supports Non-ECC, Un-buffered memory
	Supports CUDIMM
	The DIMM slots on this motherboard have double-sided latches.
Onboard Graphics	1x HDMI
	Support HDMI 2.1, maximum resolution of 4K 60Hz
	1x DisplayPort
	Support DisplayPort 1.4, maximum resolution of 4K 60Hz
	*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot	1x PCI-E x16 slot
	2x PCI-E x1 slot
	PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
	PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
	PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset)
Audio	Realtek ALC897 Codec
	7.1-Channel High Definition Audio
Storage	1x M.2
	M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
	4x SATA 6G
	*Please refer to the manual for M.2 SSD heatsink restrictions.
USB	4x USB 2.0 (Rear)
	4x USB 2.0 (Front)
	2x USB 5Gbps Type A (Rear)
	2x USB 5Gbps Type A (Front)
	1x USB 10Gbps Type C (Front)
LAN	Realtek 8125 2.5Gbps LAN
Internal IO	1x Power Connector(ATX_PWR)
	1x Power Connector(CPU_PWR)
	1x CPU Fan
	2x System Fan
	2x Front Panel (JFP)
	1x Chassis Intrusion (JCI)
	1x Front Audio (JAUD)
	1x Tuning Controller connector(JDASH)
	3x Addressable V2 RGB LED connector (JARGB_V2)
	1x RGB LED connector(JRGB)
	1x TPM pin header(Support TPM 2.0)
	4x USB 2.0 ports
	2x USB 5Gbps Type A ports
	1x USB 10Gbps Type C ports
LED FEATURE	4x EZ Debug LED
	1x EZ Memory Detection LED
BACK PANEL PORTS	DisplayPort
	USB 2.0
	USB 5Gbps Type-A
	2.5G LAN
	Audio Connectors
	HDMI
	USB 2.0
OPERATING SYSTEM	Support for Windows 11 64-bit
PCB Info	mATX
	220mmx243.84mm
