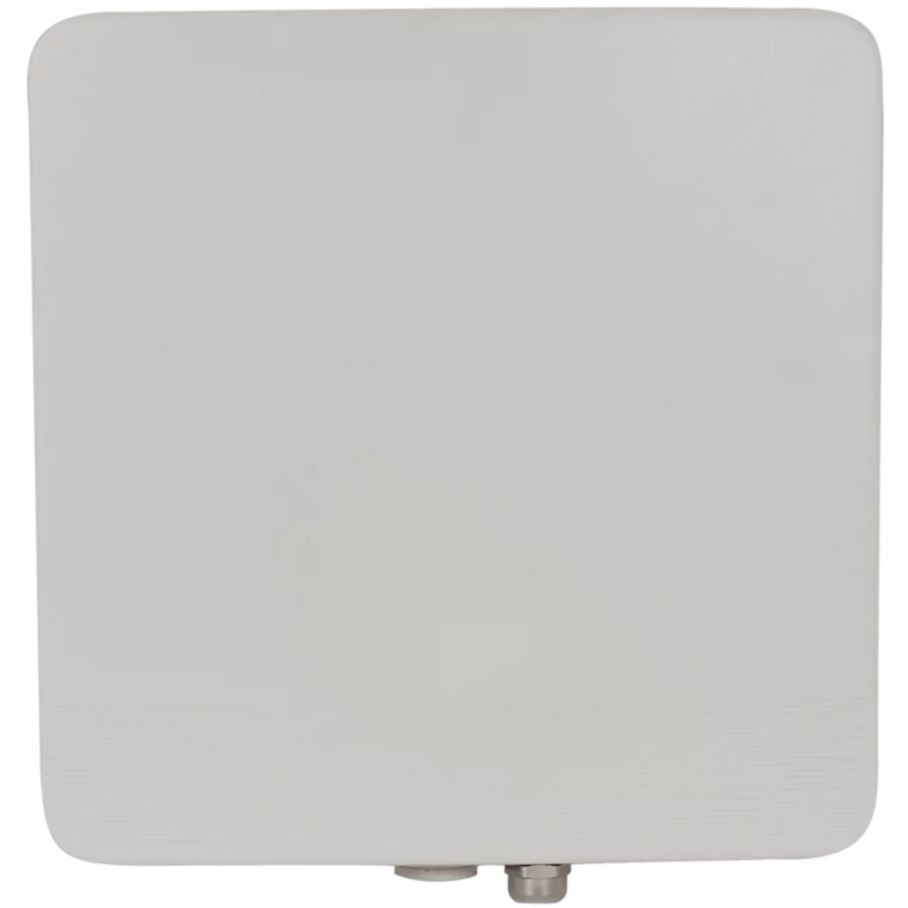

RW-5JA1500-54-INT Radwin Jet Air Duo 5GHz 1500 Mbps PtMP Base Station

RW-5JA1500-54-INT

R 73,125.00

inc. VAT

In Stock

Add To Cart

Rate

Radwin Jet Air Duo 5GHz 1500 Mbps PtMP Base Station

Images are for illustrative purposes and actual product may differ.

Product resourcesProduct PDF

RW-5JA1500-54-INT

Wireless: CPE Customer-Premises Equipment

Radwin

RW-5JA1500-54-INT information and overview

Radwin Jet Air Duo 5GHz 1500 Mbps PtMP Base Station, RW-5NG6-U650, Smart beamforming antenna with Embedded GPS, Supports multiple bands (Default 5.4GHz Universal), 4.9GHz - 6GHz Frequency range, Gigabit Ethernet Port, SFP Port, Up to 40 km range, 18 dBi gain beamforming antenna Array 4th Generation, Dual Linear Polarization

Specifications & more information about RW-5JA1500-54-INT, Wireless: CPE Customer-Premises Equipment manufactured by Radwin

Specifications & downloads View specification Printable PDF

Product information notice: Some specifications may describe a broader product range and may not apply to this exact model. Use the product summary above as the primary model reference. Bundled software may be trial software and can require a separate licence.

Overview:

JET AIR DUO: Up to 1.5 Gbps
JET AIR: Up to 750 Mbps
Beamforming antenna for best interference mitigation
4.9 GHz - 6.0 GHz
Long range - Up to 40 km / 25 miles
Up to 64 /128 SUs in JET AIR / JET AIR DUO
Ethernet and SFP data interface
Advanced MIMO, OFDM and Diversity technologies
Robust and reliable operation in harsh conditions, extreme temperature, and near- line-of-sight scenarios
GPS-based regulation identification

Features:

RADWIN JET AIR and JET AIR DUO are single- carrier and dual-carrier base station radio units (HBS) that offer up to 750 Mbps and 1.5 Gbps net throughput, respectively. These units can connect up to 64 and 128 Subscriber Units (SUs), respectively.

These base stations operate in the 4.9 to 6.0 GHz frequency range and feature 15° beamforming antenna steered over 90°, with exceptionally low sidelobe level for optimal interference immunity. Additionally, the units include built-in GPS for TDD synchronization and collocation.

JET AIR units are compatible with all RADWIN 5GHz SUs and RADWIN 2000 Alpha units.

Specifications:

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx-computers.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	RW-5JA1500-54-INT
Configuration
Architecture	Outdoor Unit with a beamforming integrated antenna with embedded GPS
Wireless topology	PtMP base station
Data interfaces	10/100/1000 Mbps RJ45 PoE, 1Gbps SFP
POE and ODU interfaces	Outdoor CAT-5e; Maximum cable length: 100m for 10/100BaseT and 75m for 1000BaseT
Radio	JET AIR DUO -:- JET AIR
Max capacity	1.5 Gbps (2x 750 Mbps) net -:- 750 Mbps net aggregate
Max capacity	aggregate throughput* -:- throughput
Maximum Subscriber Units	Up to 128 (64 per carrier) -:- Up to 64
Range	Up to 40 km / 25 miles
Frequency Range	4.900 GHz - 6.000 GHz
Channel bandwidth	Configurable: 10, 20, 40, 80 MHz
Dynamic Channel bandwidth selection	20/40/80 MHz
Multiplexing, Modulation	MIMO-OFDM (BPSK/QPSK/16QAM/64QAM/256QAM)
Error correction	FEC k = 1 / 2, 2 / 3, 3 / 4, 5/6
Adaptive modulation and Coding	Supported
Smart Bandwidth Management (DBA)	Supported
DFS	Supported
Duplex technology	TDD
Antenna modes	MIMO 2x2, diversity, adaptive MIMO/diversity
Dynamic Bandwidth management	Best Effort service level
Max TX power	24 dBm per chain
Encryption	AES128
TDD synchronization	Supported via built-in GPS / GNSS receiver
Uplink/Downlink TDD ratio	Configurable: Symmetric or Asymmetric
Networking
Sub convergence layer	Layer 2, Bridging learning of 8K MAC addresses
QoS	Packet classification to 4 priority queues according to 802.1P or Diffserv
VLAN support	802.1Q, QinQ, 4094 VLANs
ODU management	IPv4/IPv6 dual-stack; SNMPv1, SNMPv3; HTTP/HTTPS using web browser
MTU	Up to 2047
802.1x	Supported
DHCP Option 82	Supported
DHCP filtering	Supported
IGMP snooping	Supported
PPPoE filtering	Supported
RADIUS Authorization	Supported
RADIUS user authentication	Supported
Syslog	Supported
IGMP snooping	Supported
Integrated Antenna
Type	Beamforming Antenna Array 4th Generation
Gain	18 dBi
VSWR	<2.0
3 dB Azimuth beamwidth	15 deg beam (steered over 90 deg sector)
3 dB Elevation Beamwidth	20 deg
Polarization	Dual Linear (Vertical and Horizontal)
Sidelobes suppression	22 dB (typical)
Cross polarization	20 dB (typical)
F/B Ratio	40 dB (typical)
Port To Port isolation	>25 dB (typical)
