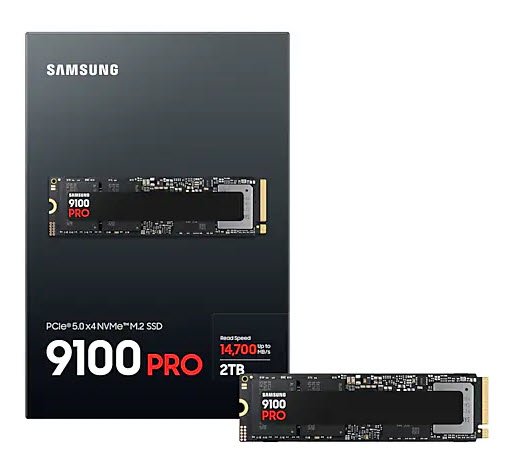

SAMSUNG MZ-VAP2T0BW

Features:

PCIe® 5.0 Performance
Max 14,800/ 13,400 MB/s sequential speeds,two times faster than 990 PRO.

Expanded Experience
Super massive capacity with exceptional compatibility*.

Innovative Power & Thermal Control
Enhanced power efficiency with advanced thermal control

Breakthrough PCIe® 5.0 performance
Push PCIe® 5.0 performance to the max. 9100 PRO achieves lightning-fast sequential read/write speeds up to 14,800/ 13,400 MB/s, two times faster than 990 PRO*. Leave Gen4 limits behind with random read/write speeds up to 2,200K/ 2,600K IOPS, made possible by Gen5.

Every task, powerfully parallel
Speed past productivity limits. Exhilarating random read/ write speeds enable ultra-fast parallel processing for countless fragmented data, at up to 2,200K/2,600K IOPS. Experience superior output and instant loads for huge games, high-performance tasks, and even AI applications.

Create with AI
Intelligence redefines performance. Defy your limits in work and play with an on-board AI PC and AI content generation, fuelled by 9100 PRO’s exhilarating random read/write speeds up to 2,200K/ 2,600K IOPS*. Swift loads, smooth gameplay, seamless performance.

Exceptional experience
Elevate your competitive edge. Breeze through video editing, 3D art, and streaming sessions with the latest PCIe® 5.0 interfaces. Experience cutting-edge performance anytime, anywhere, on compatible devices, and choose the storage you need with expansive capacity up to 8TB*.

Extraordinary thermal efficiency
Consistent peak performance. The advanced 5nm controller power architecture enhances power efficiency up to 49% over 990 PRO*. Exceptional thermal control minimises disruption, so you can keep the most demanding programs running with the max possible power of PCIe® 5.0.

Samsung Magician software
Make your SSD work like magic. Samsung Magician software's optimization tools ensure the best SSD performance. It's a safe and easy way to migrate all your data for a Samsung SSD upgrade. Protect valuable data, monitor drive health, and get the latest firmware updates.

Bringing innovations to life
For decades, Samsung’s NAND flash memory has powered groundbreaking technologies that have changed every part of our daily lives. This NAND flash technology also powers our consumer SSDs, making room for the next big push of innovation.

Specifications:

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx-computers.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	SAMSUNG MZ-VAP2T0BW
Overview
Interface	PCIe 5.0 x4, NVMe 2.0
Sequential Read	Up to 14,700 MB/s * Performance may vary based on system hardware & configuration
Sequential Write	Up to 13,400 MB/s * Performance may vary based on system hardware & configuration
Application	Client PCs, Game Consoles
Weight	Max 9.0g Weight
Dimension (WxHxD)	Max 80.15 x Max 22.15 x Max 2.38 mm
General Feature
Application	Client PCs, Game Consoles
Rated Capacity	2, 000GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)
Form Factor	M.2 (2280)
Interface	PCIe 5.0 x4, NVMe 2.0
Dimension (WxHxD)	Max 80.15 x Max 22.15 x Max 2.38 mm
Weight	Max 9.0g Weight
Storage Memory	Samsung V-NAND TLC
Controller	Samsung in-house Controller
Cache Memory	Samsung 2GB Low Power DDR4X SDRAM
Special Feature
TRIM Support	Supported
S.M.A.R.T Support	Supported
GC (Garbage Collection)	Auto Garbage Collection Algorithm
Encryption Support	AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)
WWN Support	Not supported
Device Sleep Mode Support	Yes
Performance
Sequential Read	Up to 14,700 MB/s * Performance may vary based on system hardware & configuration
Sequential Write	Up to 13,400 MB/s * Performance may vary based on system hardware & configuration
Random Read	Up to 1,850,000 IOPS * Performance may vary based on system hardware & configuration
Random Write	Up to 2,600,000 IOPS * Performance may vary based on system hardware & configuration
Environment
Average Power Consumption (system level)	Average: Read 8.1 W / Write 7.9 W* Actual power consumption may vary depending on system hardware & configuration
Power consumption (Idle)	Typical 4.8 mW * Actual power consumption may vary depending on system hardware & configuration
Power Consumption (Device Sleep)	Typical 4 mW * Actual power consumption may vary depending on system hardware & configuration
Allowable Voltage	3.3 V ± 5 % Allowable voltage
Reliability (MTBF)	1.5 Million Hours Reliability (MTBF)
Operating Temperature	0 - 70 °C Operating Temperature
Shock	1,500 G & 0.5 ms (Half sine)
