Overview:

Powerful high-speed network scanner ideal for shared or decentralised scanning.

Features:

The superfast scanner that thinks like you

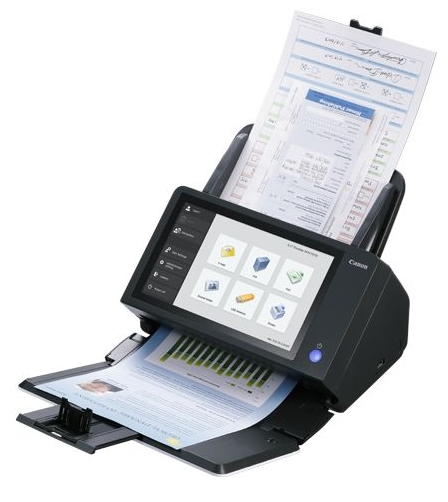

ScanFront 400 is a powerful standalone desktop network scanner offering fast, easy and reliable scanning of various document sizes and types directly to your business workflow in just few clicks - no PC or software required.

No PC required
A bright, responsive 10.1" (25.7 cm) TFT touchscreen provides a simple interface for all scanning operations with assigned job buttons for frequent settings and destinations.

Touchscreen
25.7cm (10.1") touch colour TFT display

Dedicated network scanner
Streamline your document workflows with quick, easy and direct scanning to email, network folders, FTP, USB memory, fax, or printers

Ideal for every business
A desk-friendly design and quiet operation make it perfect for both back office use and consumer-facing countertops in any size business

Boost productivity
Scan more documents with ultrareliable, high-speed scanning at 45 pages per minute, and a large, durable 60-sheet ADF rated for up to 6,000 scans per day.

Additional features

• Standalone
• Intelligent network scanning
• Duplex
• Double-sided scanning
• Network
• Scan to Folder
• Scan to FTP
• Scan to email
• Scan to USB memory
• Scan to network printer
• Scan to fax

ScanFront Administration Tool
Administration tool software allows you to manage multiple ScanFront scanners at a time. You can check the current status of the ScanFront scanners on the network, configure settings, manage users, back-up and restore configuration data.

uniFLOW compatibility
Take advantage of the uniFLOW support for Canon's ScanFront network document scanner to improve scan-capture workflows and enjoy more value from your Canon fleet. Featuring compact design and ultra-reliable document feeder, ScanFront can be positioned where it's most needed to capture a wider range of documents more efficiently.

Software Developer Kit
Our Business Solutions Developer Programme (BSDP) is dedicated to give you access to a range of technical information to assist development of applications for our range of business products.

What's in the box

• Canon imageFORMULA ScanFront 400
• Feed tray
• Setup guide
• AC adapter
• Power cable
• Setup disc

Specifications:

©2025 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx-computers.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	SCCASCANFRONT400
General product information
Type	ADF Network Document Scanner
Scanning sensor unit	CMOS CIS 1 Line Sensor (x2)
Optical resolution	600dpi
Light source	RGB LED
Scanning side	Simplex/Duplex
Interface	LAN: 10Base-T/100Base-TX/1000Base-T (RJ-45 connector)
	3x USB 2.0 (for USB Memory, Keyboard, Mouse, etc.)
Operation panel	10.1" (TFT-LCD Touch Panel (WSGVA 1024 x 600)
Paper separation	Retard Roller
Daily duty cycle	Approx. 6,000 scans / day
Scanning specifications
Black and White Speed	45ppm / 90ipm
Colour Speed	45ppm / 90ipm
Scanning resolution	100 x 100dpi / 150 x 150dpi / 200 x 200dpi /
	300 x 300dpi / 400 x 400dpi / 600 x 600dpi
Scanning modes	Black and White, Error Diffusion, Text Enhancement, 256-level Grayscale, 24-bit Colour, Auto Colour Detection
Scanning features	Ultrasonic double feed detection, Double feed retry / release, Deskew, Folio Mode, Long document scanning, Skip Blank Page, Automatic document orientation, Background smoothing, Bleed-through reduction, Remove shadow, Colour drop-out / enhancement
File output	TIFF, JPEG, PNG, PDF, PDF/A
File naming	Type file name
	Auto file name
	Custom file name
Index files (metadata) output	XML, CSV
Metadata information	String, User name, Data, Time, Device name, Counter, File name, File size, Number of pages, Desination path
Document specifications
Paper	Width: 50 - 216mm
	Length: 54 - 356mm (3, 048mm in Long Document Mode)
	Thickness (separation ON): 27 - 209 g/m² (0.04 - 0.25mm)
	Thickness (separation OFF): 27 - 255 g/m² (0.04 - 0.30mm)
Business card	Size: 50 x 85mm
	Thickness: up to 380g/m² (0.35mm)
Card	Size: 54 x 86 mm (ISO Standard)
	Thickness: 1.4 mm
	Horizontal feeding only, max. 10 cards or 1 embossed
Passport	Use optional passport carrier sheet
	Thickness: up to 6mm (including carrier sheet)
Feeder capacity	60 sheets (80 g/m²)
Network features
Scanning destinations	Scan to Shared Folder
	Scan to E-mail
	Scan to FTP
	Scan to FAX (via Internet fax service)
	Scan to Printer (FTP printing)
	Scan to USB Memory
Protocols	TCP/IP (IPv4), DNS, DHCP, SMB, NTP, HTTP, FTP, SFTP, Secure sending (FTPS and SMTPS), WebDAV, LDAPS
IP address	Obtained automatically (DHCP supported) or fixed
Directory support	Active Directory (NTLM authentication)
	OpenLDAP (simple authentication)
Software
Software Tools	ScanFront Administration Tool Web Application Toolkit (SDK)1
Physical Features
Dimensions (WxHxD)	Trays closed: 305 x 282 x 230 mm
	Trays opened: 305 x 629 x 366 mm
Weight	Approx. 4.5kg
Power requirements	AC100-240V (50/60Hz)
Power Consumption	Scanning: 40W or less
	Sleep Mode: 2.0W or less
	Power Turned Off: 0.5W or less
Operating Environment	Temperature: 10 - 32.5°C Humidity: 20 - 80% RH
Environmental compliance	RoHS and ENERGY STAR
Consumables and accessories
Consumables	Exchange Roller Kit (feed roller and retard roller), Carrier Sheet (Passport), Carrier Sheet (A4)
