Overview:

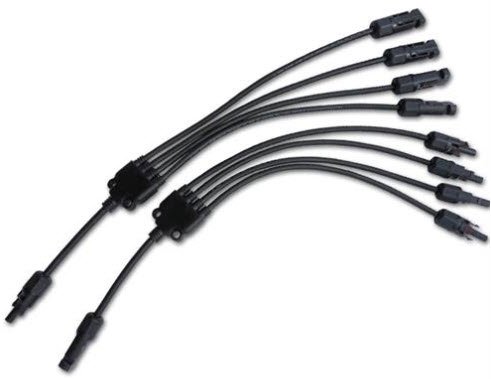

The Solarwize MC4 Y Branch Connector 4 Way To 1 Way Combiner Cable Set is used for connecting solar panels in series or parallel and ideal for connecting solar panels together. It allows you to connect 4 independent input/output connectors into a single MC4 connector on the opposite side of your solar panel. This allows you a simple way to connect or expand multiple solar panels together without running cables, making installation easier and faster than ever before with the easy to Install Snap-in lock system. Allow for a clean energy transfer between output cables from the solar array and connections to combiner boxes or inverters. This MC4 Y 4-1 Branch Connector is compatible with the MC4 connector, for connecting your solar panels to a charge controller or inverter.

Features:

• MC4 Y Branch Connector 4 Way To 1 Way Combiner Cable Set
• Easy To Install Snap-in lock Connector System
• 4-In 1-Out Connector Cable
• Tested Voltage Up 1000V DC
• 4 mm Diameter Contact Pin
• Used For Connecting Solar Panels In Series Or Parallel
• Connect 4 Independent Input / Output Connectors Into A Single MC4 Connector
• Degree Of Protection: IP2X/IP67

Specifications:

• Stock Code SOLPAMY041
• Description Solarwize MC4 Y Connector 4 Way To 1 Way Combiner Cable Set
• Product Type MC4 4-Way PV Solar Panel Y-Combiner Cable Pair
• Overvoltage Type/Pollution Degree:6000V(50Hz, 1min).
• Contact Resistance Of Plug Connector: CAT III /2.
• Contact Resistance Of Plug Connector:≤0.5mΩ.
• Contact Material: Copper, Tin-plated.
• Protection: IP2X/IP67
• Snap-In Connector Locks System
• Voltage Rating 1000VDC
• Colour Black
