Overview:

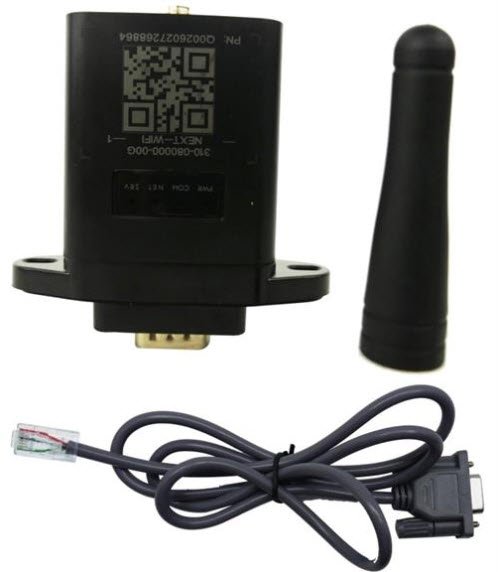

The Solarix Wifi Module For Solarix Sun Inverters enable wireless communication between the Solarix inverters and the monitoring platform. Users have complete and remote monitoring and controlling experience for inverters when combining WiFi module with the downloadable APP that is available for both iOS and Android based devices for up to 30 metres. Includes RJ45 to R232 Cable. Unit is designed to work with the Solarix Sun 6.5KVA Inverters. User Leaflet Is Included In The Box

Specifications:

• Stock Code SOLWIFIDG01
• Description Solarix Wifi Module For Solarix Sun Inverters
• RS232 Communication Interface
• Includes RJ45 to R232 Cable
• Designed To Work With The Solarix Sun 6.5KVA Inverters
• Wifi Protocol 802.11 b/g/n
• WEP, WPA/WPA2 Encryption
• Wifi Frequency: 2.4GHz
• Wireless Gain: 2.5dBi
• Wifi  Distance: Up 30 meters (open space)
• External Power Input: 5V-12V
• Power Consumption: 2 watt (max.)
• User Leaflet Is Included In The Box
• Operating Temperature: -20°C ~ 75°C
• Operating Humidity: 0 ~ 95%
• Storage Temperature: -30°C ~ 80°C
• Dimension, D x W x H (mm): 28 x 46 x 172
• Net Weight (g): 120
