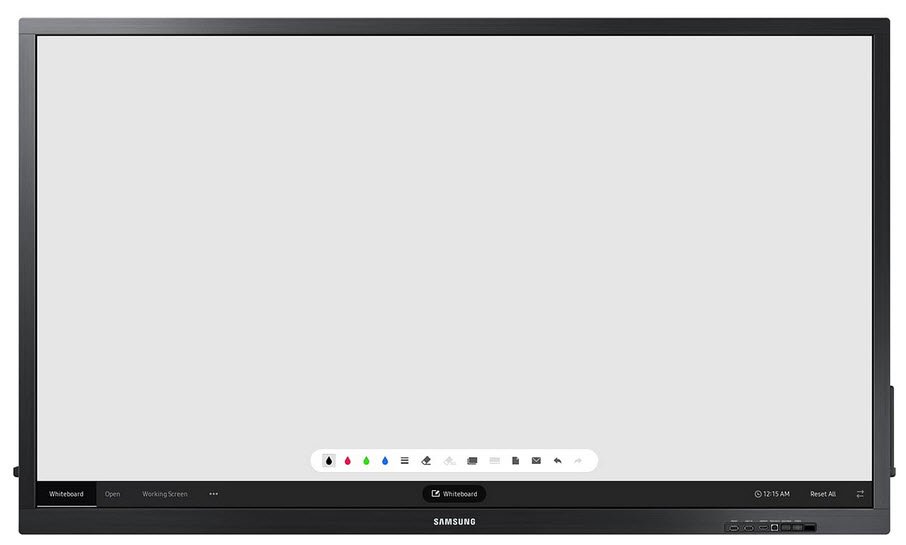

Samsung QB75H-TR

Features:

Revitalize Productive Collaboration
QBH-TR e-boards offer a versatile, all-in-one arena for improved collaboration. Enhanced touch technology, the intuitive MagicIWB S5 solution and UHD picture quality come together to boost productivity and collaboration by facilitating engaging, efficient interaction.

Enhance Touch, Enhance Capacity
Leverage heightened touch functionality for a smooth and versatile digital writing experience. Up to four users can write simultaneously using the provided pen or virtually any other tool.

Elevate Collaboration Quality
The embedded MagicIWB S5 solution facilitates discussion management and organization with an intuitive interface for quick access to vital collaborative functionalities such as screen mirroring and real-time notation saving.

Switch Sources Seamlessly
Through the Working Screen function, users can quickly switch between multiple screens, such as the whiteboard, internet browser and connected input sources, with just a few touches.

Retrieve and Control Content Remotely
Pull and edit content on remote laptops directly through the central screen utilizing touch functionality. The powerful Knox system secures the Remote Workspace connection to protect against information leakage and meddling.

Connect with Convenience
Each e-board offers a wide range of connections including HDMI, DVI-D, DP and USB ports, where users can load, share and revise content directly from their personal devices.

Amplify Visual Presentation
Bring collaborative ideas to life through advanced UHD picture quality. Through ultra-high resolution, ensure all notations and introduced content are clear and legible for every participant.

Maintain Organization with Style
Drive more organized collaboration with a sleek, sophisticated design. The magnetic side pen holder and frontal connection ports keep needed functions within reach, without the mess.

Specifications:

© 2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx-computers.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications and features
Product Code	Samsung QB75H-TR
Panel
Diagonal Size	75"
Type	120Hz Direct LED
Resolution	3840*2160 (4K UHD)
Pixel Pitch(mm)	N/A
Active Display Area(mm)	N/A
Brightness(Typ.)	250 nit
Contrast Ratio	Mega
Viewing Angle(H/V)	178//178
Response Time(G-to-G)	8ms
Display Colors	N/A
Color Gamut	N/A
Operation Hour	16//7
Haze	N/A
Display
Dynamic C/R	N/A
H-Scanning Frequency	N/A
V-Scanning Frequency	N/A
Maximum Pixel Frequency	N/A
Sound
Speaker Type	Built in Speaker (10W x 2)(Down Firing w/Bass Reflex)
Connectivity
Input	Video - HDMI Rear1, HDMI Rear2 (ver 2.0), HDMI Front3 (ver 1.4), DVI-D, DP
	HDCP - N/A
	USB - USB 1, 2 (Rear), USB 3 (Front), PC USB (Front)
Output	Audio - Audio
	Touch Out - Touch Out 1 (Rear), Touch Out 2 (Front)
	Power Out - N/A
	External Control - RS232C(in/out) thru stereo jack, RJ45, Wi-Fi
	External Sensor - IR Sensor(Display Control)
	Tuner - N/A
Touch
Type	IR (Infra Red)
# of Drawing	4 drawing (SoC), 10 drawing (External Windows PC)
Touch Pen Type	Passive Pen
Object Recognition Range	8mm
Touch Response Time	7ms
Power
Type	Internal
Power Supply	AC 100~240V 50/60Hz
Power Consumption	Max[W/h] - N/A
	Energy-saving[W/h] - '150(Max 165) 370(Max 407)
	Typical[W/h] - 115 265
	Stand-by(Max) - 0.5
	BTU(Max) - N/A
	Sleep mode - N/A
	Off mode - N/A
Mechanical Specification
Dimension (mm)	Set - 1741.5 X 1012.1 X 86.8
	Package - 1865 X 467 X 1152
Weight (kg)	Set - 54.8
	Package - 68.4
Color	Black
VESA Mount (mm)	400 x 400
Protection Glass	Yes
Stand Type	Wall Mount
Media Player Option Type	N/A
Power Cable Length	3m
Accessory	Pen Holder
Bezel Width (mm)	N/A
Operation
Operating Temperature	0.0 °C ~ 40.0 °C
Humidity	10.0 % ~ 80.0 %
Feature
Key Features	Slim & Light LFD with Built-in MagicInfo Player S5, SSSP
Special Features	H/W:Super Clear Coating, Temperature Sensor, Clock Battery(168hrs Clock Keeping), Built in Speaker(10W x 2), WiFi Module Embedded S/W:MagicIWB S5
Internal Player	Processor - Cortex A72 1.7GHz Quad-Core CPU
	On-Chip Cache Memory - L1 Instruction Cache : 48KB L1 Data Cache : 32KB L2 Cache : 2MB
	Clock Speed - 1.7GHz Quad-Core CPU
	Main Memory Interface - 3GB 3ch 64bit LPDDR4 1.6GHz
	Graphics - 2D & 3D Graphic Accelerator Data Format : 32bpp Output resolution : 3840x2160p
	Storage (FDM) - 8GB (3.88GB Occupied by O/S, 4.12GB Available)
	Multimedia - Video Decoder - MPEG 1/2/4, H.263, H.264/AVC - UHD H.264/AVC, VC-1, AVS/AVS+, MVC - VP8, VP9, HEVC, JPEG Audio DSP(Decoder) - MPEG, AC3, AC4, DD, MP3 and etc
	IO Ports - USB 2.0
	Operating System - Tizen 3.0 (VDLinux)
Certification
Safety	N/A
EMC	N/A
Accessory
Included	Passive Pen, Power Cable
Optional	Stand - Optional
	Mount - WMN6575SE
	Specialty - New MagicIWB S5 UX
Media Player
Media Player	Media Player - N/A
