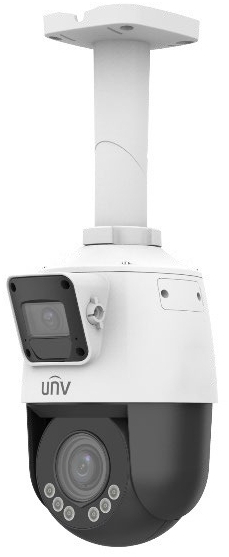

UN-IPC9312LFW-AF28 Uniview UNV Ultra H.265 2 MP Outdoor LightHunter 4x Optical Zoom Dual-Lens PTZ & bullet combo camera
Images are for illustrative purposes and actual product may differ.
UN-IPC9312LFW-AF28 IP network security cameras Uniview
UN-IPC9312LFW-AF28 information and overview
Uniview UNV Ultra H.265 2 MP Outdoor LightHunter 4x Optical Zoom Dual-Lens PTZ & bullet combo camera, 2.8mm @ F1.6 Lens on Panorama camera, 2.8~12mm @ F1.6 AF automatic focusing and motorized Zoom Lens on Detail camera
Specifications & more information about UN-IPC9312LFW-AF28 , IP network security cameras manufactured by Uniview
Product information notice: Some specifications may describe a broader product range and may not apply to this exact model. Use the product summary above as the primary model reference. Bundled software may be trial software and can require a separate licence.
Overview:
Fixed camera and PTZ camera integration, dual channels with one IP, look at overall situation and consider details at the same time High quality image with 2MP,1/2.8 CMOS sensor 1920*1080@25fps in the main stream Ultra 265, H.265, H.264, MJPEG 4X optical zoom of PTZ channel allows for closer viewing of subjects Lighthunter technology ensures ultra-high image quality in low illumination environment Up to 120 dB Optical WDR (Wide Dynamic Range) Built-in 2*mic & high-power speaker, support two-way audio, has better sound performance Support ceiling mount and wall mount IR & warm light illumination to deal with different scenes and achieve full-color illumination DC12V or PoE+(IEEE 802.3at) power supply Specifications:
©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx-computers.co.za ), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered. Specifications Product Code UN-IPC9312LFW-AF28 Camera 1 Camera Panorama Sensor 1/2.8", 2MP, CMOS Min. Illumination Color:0.002 lux (F1.6, AGC ON) 0 lux with IR Day/Night IR-cut filter with auto switch (ICR) Shutter Auto/Manual, 1 ~ 1/100000s WDR 120dB S/N > 52dB Lens Lens type 2.8mm@F1.6 Optical Zoom N/A Iris Fixed aperture Angle of View (H) 102.4° Angle of View (V) 54.9° Angle of View (O) 133.1° Illuminator IR Range Up to 10m (32.8 ft) Warm Light Range N/A Wavelength 850nm (IR) Light On/Off Control Auto/Manual Video Video Compression Ultra 265, H.265, H.264, MJPEG Frame Rate Main Stream: 1080P (1920*1080), Max 25fps Sub Stream: 720P (1280*720), Max 25fps Video Bit Rate 128 Kbps~16 Mbps U-code Support (Main stream) ROI Up to 8 areas Video stream Dual streams OSD Up to 4 OSDs Privacy Mask 24 areas, up to 4 areas per scene Image White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 Digital noise reduction 2D/3D DNR Smart IR Support Flip Normal/Flip Vertical/Flip Horizontal/180° HLC Support BLC Support Defog Digital defog Events Basic Detection Audio detection General Function Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication Audio Audio Compression G.711U, G.711A Audio Bitrate 64 Kbps Two-way Audio Support Suppression Support Sampling Rate 8 kHz Storage Edge Storage Micro SD, up to 256 GB Network Storage ANR, NAS(NFS) Network Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS Compatible Integration ONVIF (Profile S, Profile G), API, SDK User/Host Up to 32 users. 2 user levels: administrator and common user Security Password protection, strong password, HTTPS encryption, Export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF Client EZStation EZLive EZView Web Browser Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above Pan & Tilt Pan Range N/A Pan Speed N/A Preset speed: N/A Tilt Range 18° ± 5° Tilt Speed N/A Preset speed: N/A Number of Presets 255 Preset Patrol 16 patrol routes, up to 64 presets for each route Patrol Stay Time 1000s~1800s Preset Image Freeze N/A Home Position Support Interface Audio I/O N/A Alarm I/O N/A Serial Port N/A Built-in Mic Support (Mic*2) Built-in Speaker Support Wi-Fi N/A Network 1 * RJ45 10M/100M Base-TX Ethernet Video Output N/A Certification EMC FCC CFR 47 Part 15 EN 55032:2015 EN 55024:2010 EN 61000-3-2:2014 EN 61000-3-3-2013 Safety IEC 62368-1 EN 62368-1 UL 62368-1 Environment CE-ROHS (2011/65/EU, (EU)2015/863), WEEE (2012/19/EU), REACH (Regulation (EC) No 1907/2006) General Power DC12V, PoE+(IEEE 802.3at) Power consumption: MAX 16W Power Interface Ø 5.5mm coaxial power plug Dimensions (Ø x H) Wall Mount: Ø134 x 192 x 302mm (Ø5.3" x 7.6" x 11.9") Ceiling Mount: Ø134 x 154 x 363mm (Ø5.3" x 6.1" x 14.3") Weight 1.03kg (2.27lb) Working Environment -20°C ~ 60°C(-4°F ~ 140°F), Humidity: ≤95% RH (non-condensing) Storage Environment -30°C ~ 70°C(-22°F ~ 158°F), Humidity: ≤95% RH (non-condensing) Surge protection 2KV Reset button Support Protection Ingress Protection: IP66 Vandal Resistant: N/A Camera 2 Camera Detail Sensor 1/2.8", 2MP, CMOS Min. Illumination Color:0.002 lux (F1.6, AGC ON) 0 lux with IR/Warm light Day/Night IR-cut filter with auto switch (ICR) Shutter Auto/Manual, 1 ~ 1/100000s WDR DWDR S/N >52dB Lens Lens type 2.8~12mm@F1.6 AF automatic focusing and motorized zoom lens Optical Zoom 4X Iris Fixed aperture Angle of View (H) 106.6° ~ 30.6° Angle of View (V) 56.5° ~ 17.4° Angle of View (O) 138.6° ~ 37.6° Illuminator IR Range Up to 50m (164.0 ft) Warm Light Range Up to 10m (32.8 ft) Wavelength 850nm (IR) Light On/Off Control Auto/Manual Video Video Compression Ultra 265, H.265, H.264, MJPEG Frame Rate Main Stream: 1080P (1920*1080), Max 25fps Sub Stream: 720P (1280*720), Max 25fps Video Bit Rate 128 Kbps~16 Mbps U-code Support (Main stream) ROI Up to 8 areas Video stream Dual streams OSD Up to 4 OSDs Privacy Mask 24 areas, up to 4 areas per scene Image White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 Digital noise reduction 2D/3D DNR Smart IR Support Flip Normal/Flip Vertical/Flip Horizontal/180° HLC Support BLC Support Defog Digital defog Events Basic Detection Audio detection General Function Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication Audio Audio Compression G.711U, G.711A Audio Bitrate 64 Kbps Two-way Audio Support Suppression Support Sampling Rate 8 kHz Storage Edge Storage Micro SD, up to 256 GB Network Storage ANR, NAS(NFS) Network Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS Compatible Integration ONVIF (Profile S, Profile G), API, SDK User/Host Up to 32 users. 2 user levels: administrator and common user Security Password protection, strong password, HTTPS encryption, Export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF Client EZStation EZLive EZView Web Browser Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above Pan & Tilt Pan Range 0° ~ 345° Pan Speed 1°/s ~ 40°/s Preset speed: 40°/s Tilt Range -10° ~ 100° Tilt Speed 1°/s ~ 50°/s Preset speed: 50°/s Number of Presets 255 Preset Patrol 16 patrol routes, up to 64 presets for each route Patrol Stay Time 1000s~1800s Preset Image Freeze N/A Home Position Support Interface Audio I/O N/A Alarm I/O N/A Serial Port N/A Built-in Mic Support (Mic*2) Built-in Speaker Support Wi-Fi N/A Network 1 * RJ45 10M/100M Base-TX Ethernet Video Output N/A Certification EMC FCC CFR 47 Part 15 EN 55032:2015 EN 55024:2010 EN 61000-3-2:2014 EN 61000-3-3-2013 Safety IEC 62368-1 EN 62368-1 UL 62368-1 Environment CE-ROHS (2011/65/EU, (EU)2015/863), WEEE (2012/19/EU), REACH (Regulation (EC) No 1907/2006) General Power DC12V, PoE+(IEEE 802.3at) Power consumption: MAX 16W Power Interface Ø 5.5mm coaxial power plug Dimensions (Ø x H) Wall Mount: Ø134 x 192 x 302mm (Ø5.3" x 7.6" x 11.9") Ceiling Mount: Ø134 x 154 x 363mm (Ø5.3" x 6.1" x 14.3") Weight 1.03kg (2.27lb) Working Environment -20°C ~ 60°C(-4°F ~ 140°F), Humidity: ≤95% RH (non-condensing) Storage Environment -30°C ~ 70°C(-22°F ~ 158°F), Humidity: ≤95% RH (non-condensing) Surge protection 2KV Reset button Support Protection Ingress Protection: IP66 Vandal Resistant: N/A
Similar IP network security cameras
The
best price and guaranteed service and backup from official
computer suppliers in South Africa for the
UN-IPC9312LFW-AF28 Uniview UNV Ultra H.265 2 MP Outdoor LightHunter 4x Optical Zoom Dual-Lens PTZ & bullet combo camera .
The Uniview
UN-IPC9312LFW-AF28 Uniview UNV Ultra H.265 2 MP Outdoor LightHunter 4x Optical Zoom Dual-Lens PTZ & bullet combo camera is available for R4055 . The product is sold by ComX Computers as new . Prices are valid today 2026-10-11 (before 2026-10-12 , by quote, while stocks last). The product is expected to be in stock, although this is not guaranteed .
Available from this
online computer store delivering door-to-door in Johannesburg, Cape Town, Port Elizabeth, Pretoria, Pietermaritzburg, Polokwane, Durban and all over South Africa.
Find related UN-IPC9312LFW-AF28 Uniview UNV Ultra H.265 2 MP Outdoor LightHunter 4x Optical Zoom Dual-Lens PTZ & bullet combo camera products in our
IP network security cameras Category for even more options. Read reviews and find out about UN-IPC9312LFW-AF28 Uniview UNV Ultra H.265 2 MP Outdoor LightHunter 4x Optical Zoom Dual-Lens PTZ & bullet combo camera. Discounts, specials and cheap prices only at ComX Computers.
