USW-PRO-MAX16P Ubiquiti UniFi Pro Max 16 PoE 16 port Layer 3 Etherlighting Switch with 2.5 GbE

USW-PRO-MAX16P

R 8,710.00

inc. VAT

In Stock

Add To Cart

Rate

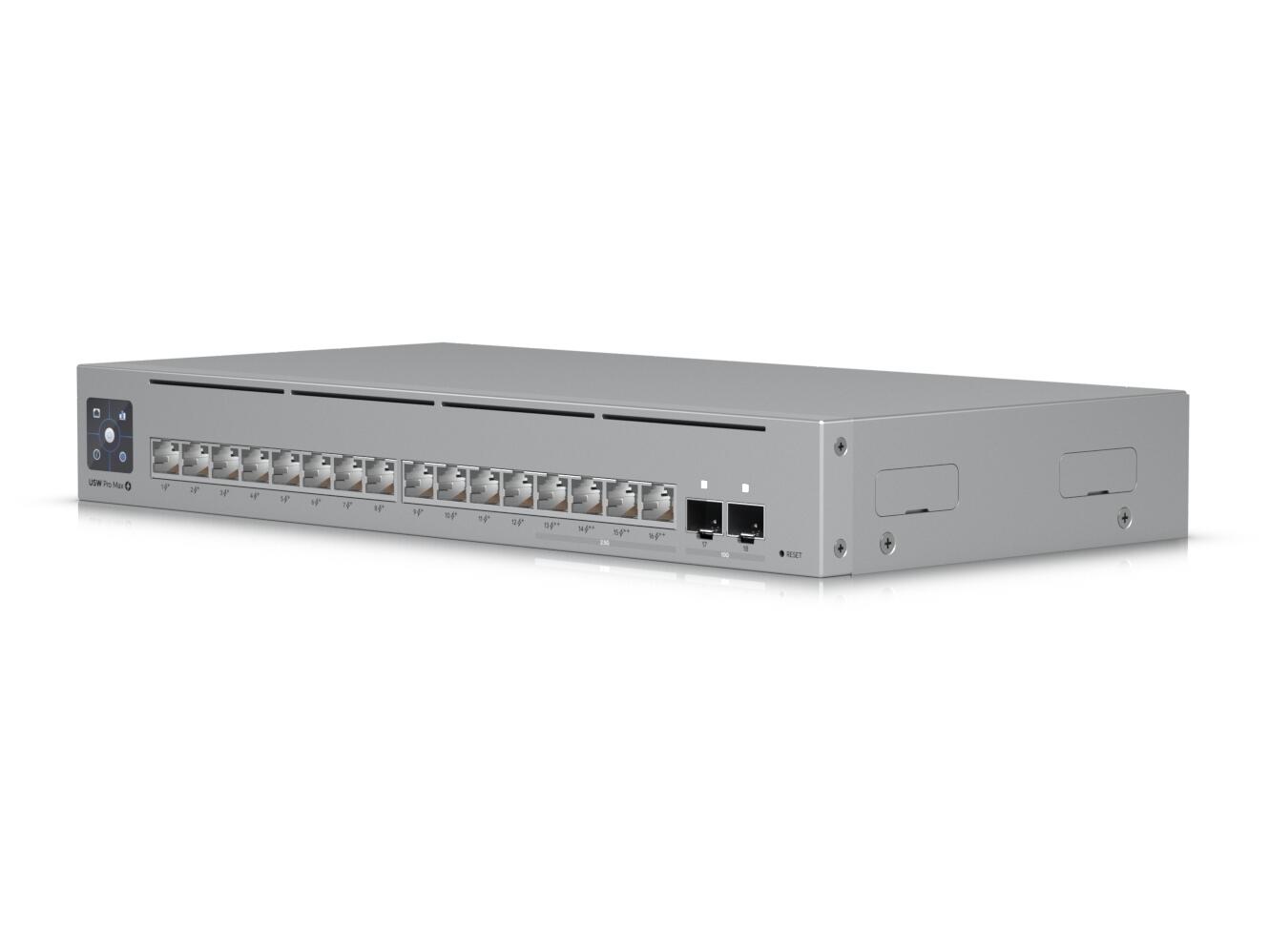

Ubiquiti UniFi Pro Max 16 PoE 16 port Layer 3 Etherlighting Switch with 2.5 GbE

Images are for illustrative purposes and actual product may differ.

USW-PRO-MAX16P

Network: Switch

Ubiquiti

USW-PRO-MAX16P information and overview

Ubiquiti UniFi Pro Max 16 PoE 16 port Layer 3 Etherlighting Switch with 2.5 GbE, 180W PoE budget, 12x GbE RJ45 Ports, 4x 2.5 GbE RJ45 Ports, 2x 10G SFP+ Ports, 12x PoE/PoE+, 4x 60W PoE++, 84 Gbps switching capacity, USW-PRO-MAX-16-POE

Specifications & more information about USW-PRO-MAX16P, Network: Switch manufactured by Ubiquiti

Specifications & downloads View specification Printable PDF

Product information notice: Some specifications may describe a broader product range and may not apply to this exact model. Use the product summary above as the primary model reference. Bundled software may be trial software and can require a separate licence.

Overview:

Pro Max 16 PoE
USW-Pro-Max-16-PoE (180W)

A 16-port, Layer 3 Etherlighting switch with 2.5 GbE, PoE++ output, and versatile mounting options.
Etherlighting ports that illuminate to indicate port location, speed/link, and native VLAN/network*
(4) 2.5 GbE PoE++ ports
(12) GbE PoE+ ports
(2) 10G SFP+ ports
180W total PoE availability
Versatile desktop, wall, and rack** mounting
Silent, fanless cooling system

Specifications:

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx-computers.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	USW-PRO-MAX16P
Mechanical
Dimensions	325.1 x 160 x 43.7 mm (12.8 x 6.3 x 1.7")
Weight	2.1 kg (4.6 lb)
Enclosure material	SGCC steel
Hardware
Management interface	Ethernet In-Band
Networking interface	(12) GbE RJ45 ports
	(4) 1/2.5 GbE RJ45 ports
	(2) 10G SFP+ ports
PoE interface	(12) PoE/PoE+ (Pins 1, 2+, 3, 6-)
PoE interface	(4) 60W PoE++ (Pair A 1, 2+, 3, 6-) (Pair B 4, 5+, 7, 8-)
Total non-blocking throughput	42 Gbps
Switching capacity	84 Gbps
Forwarding rate	62.496 Mpps
Power method	DC adapter
Power supply	54V, 210W
Max. power consumption	30W (Excluding PoE output)
Total available PoE	180W
Max. PoE wattage per port by PSE	PoE: 15.4W
	PoE+: 30W
	PoE++: 60W
Voltage range PoE mode	PoE: 44-57V
Voltage range PoE mode	PoE+/PoE++: 50-57V
LCM display	(1) 1.3" touchscreen
Button	Factory reset
Ambient operating temperature	-5 to 40° C (23 to 104° F)
Ambient operating humidity	10 to 90% noncondensing
Certifications	CE, FCC, IC
Switching Features
Layer 2 features	IGMP snooping
	STP / RSTP with priorities and port-level disable
	Port isolation
	Storm control
	Voice VLAN
	Port mirroring
	LACP port aggregation
	Multicast / broadcast rate limiting
	MAC address blocking
	Flow control
	802.1X control
	Jumbo frames
	Proprietary loop protection
	DHCP snooping / guarding
	Egress rate limit
	LLDP-MED
	Port restricted by MAC
	Device isolation with ACLs
Layer 3 features	DHCP for locally-managed networks
	DHCP relay
	Inter-VLAN routing between networks on same switch
	Static routing between local networks
	Network isolation with ACLs
Etherlighting
Ethernet	Locating
	Speed/link
	Native VLAN/network
SFP+	Locating
	Speed/link
	Native VLAN/network
Application Requirements
UniFi Network	Version 8.1.127 and later
