Overview

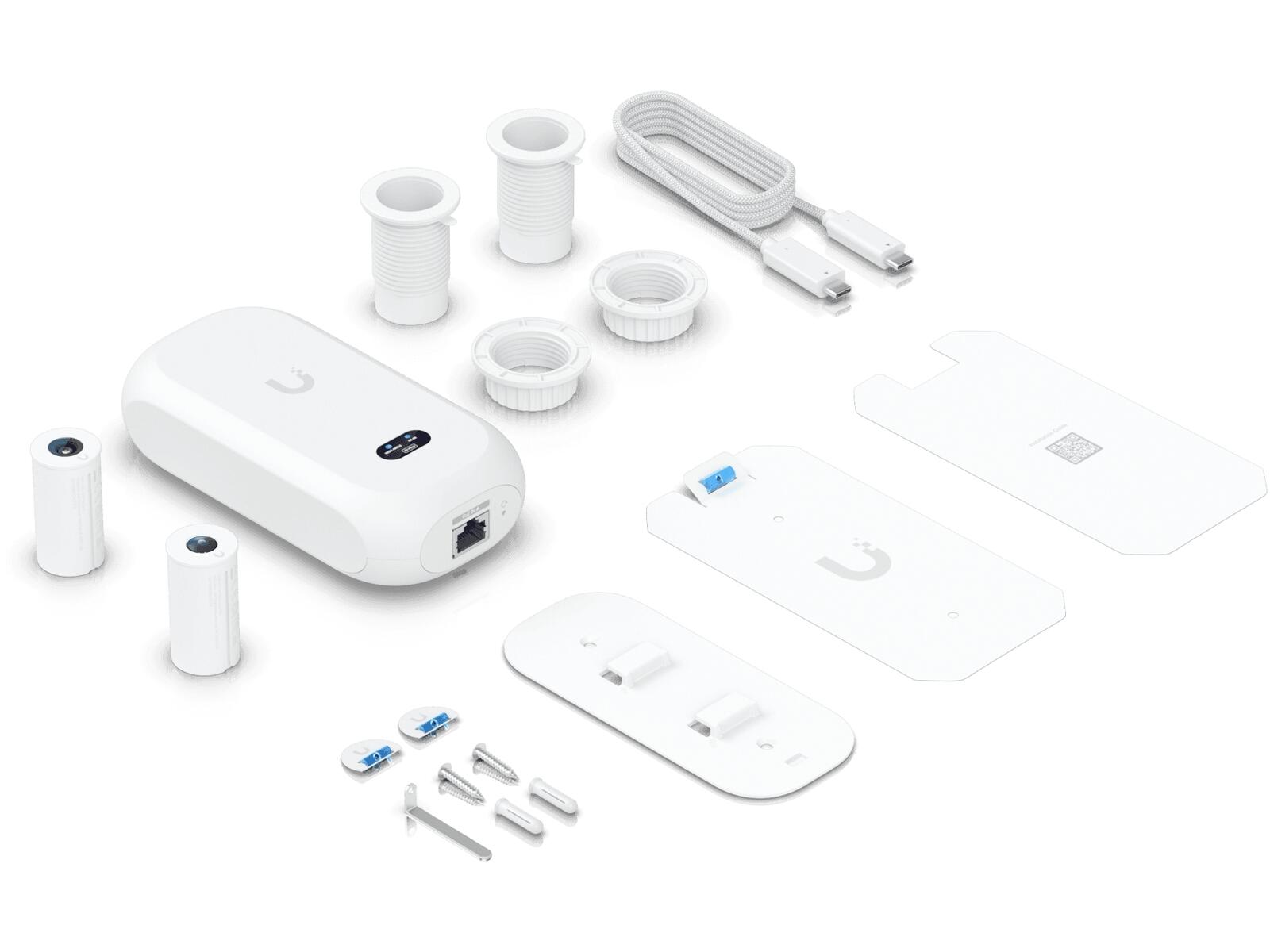

Ubiquiti UniFi Protect AI Theta IP Camera System
Elevate your security setup with the Ubiquiti UniFi Protect AI Theta IP Camera system. Designed for high-resolution surveillance and advanced AI detection, this system combines 4K video quality with intelligent analytics to monitor your property with precision. Its compact design and remote processing unit make installation and management straightforward for both residential and commercial environments.

Description

The UniFi Protect AI Theta system delivers ultra-clear 8MP and 6MP video with a wide field of view, capturing every detail. The AI-powered camera can detect people, read license plates, and distinguish important activities. The system is powered through PoE, simplifying installation while ensuring reliable connectivity. A remote processing unit with a status display allows easy monitoring and management of the system. Ideal for wall or ceiling mounting, this camera blends discreetly into any space.

Features

High-Resolution Video and AI Detection

• 4K resolution (8MP / 6MP) for crisp, detailed footage
• Advanced AI detects people, reads license plates, and identifies unusual activity
• H.264 video compression ensures smooth streaming and efficient storage

Compact and Discreet Design

• Flat wall or ceiling mounting with a minimalistic form factor
• Lens options include 360-degree and flush mount variations
• Lightweight components and durable aluminum/polycarbonate construction

Remote Processing and Easy Connectivity

• Quad-core processor for local AI computation
• Remote processing unit with status display for convenient monitoring
• Gigabit Ethernet port and PoE power method streamline installation
• Single cable solution supports both data and power

Optimized Imaging and Video Control

• Multiple lens options with wide-angle coverage:
  • Theta Lens: 97.5degrees horizontal, 79.4degrees vertical, 118.2degrees diagonal
  • Theta Lens 360: 180degrees full coverage
• Adjustable image settings including brightness, contrast, sharpness, exposure, and white balance
• Noise reduction options: 2DNR, 3DNR, motion-based NR, masking, and text overlay

Reliable System Performance

• Power consumption up to 12.5W
• Supports 5V DC input with output for auxiliary devices
• Operating temperature range from -20degrees C to 40degrees C with 10-90% humidity tolerance
• LED indicators and factory reset button for easy system management

Integrated Audio Capabilities

• Built-in microphone and speaker
• Audio can be enabled or disabled based on user preferences

User-Friendly Software

• Full support for UniFi Protect web application (version 2.7.18+)
• Mobile app compatibility for iOS and Android (version 1.11.0+)
• Remote management, live view, and recording features

Technical Dimensions

• Hub: 140 x 70 x 38 mm, 330 g
• Theta Lens/360: Ø22.8 x 43.5 mm, 15 g
• Flush Mount Lens: 12 g
• Cable: 1 m woven fabric jacket, proprietary Theta connector

Connectivity and Installation

• Supports wall and ceiling mounting
• Simple PoE setup for power and data through one cable
• FCC, IC, and CE certified

Specifications

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx-computers.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	UVC-AI-THETA
Mechanical
Dimensions	UVC-AI-Theta-Hub: 140 x 70 x 38 mm (5.5 x 2.8 x 1.5")
	UVC-AI-Theta-Lens/360: Ø22.8. x 43.5 mm (Ø0.9 x 1.7")
Weight	UVC-AI-Theta-Hub: 330 g (11.6 oz)
	UVC-AI-Theta-Hub Mount: 35 g (1.2 oz)
	UVC-AI-Theta-Lens/360: 15 g (0.5 oz)
	UVC-AI-Theta-Lens/360 Flush Mount: 12 g (0.4 oz)
Enclosure materials	UVC-AI-Theta-Hub: aluminum alloy
	UVC-AI-Theta-Lens/360: aluminum alloy, polycarbonate
	UVC-AI-Theta-Lens/360 Flush Mount: polycarbonate
Mount materials	UVC-AI-Theta-Hub: aluminum alloy
	UVC-AI-Theta-Lens/360: aluminum alloy, polycarbonate
	UVC-AI-Theta-Lens/360 Flush Mount: polycarbonate
Cable jacket enclosure dimensions	28 x 13 x 7.5 mm (1.1 x 0.5 x 0.3")
Cable jacket enclosure material	PVC
Cable length	1 m (3.3 ft)
Cable diameter	3.7 mm (0.15")
Cable jacket material	Woven fabric
Cable weight	18 g (0.63 oz)
Cable connector type	Theta proprietary
Optics
Sensor	UVC-AI-Theta-Lens: 8MP CMOS sensor
	UVC-AI-Theta-Lens-360: 12MP CMOS sensor
Lens	Fixed focal length
View angle	UVC-AI-Theta-Lens: H: 97.5degrees, V: 79.4degrees, D: 118.2degrees
	UVC-AI-Theta-Lens-360: H: 180degrees, V: 180degrees, D: 180degrees
Video
Video compression	H.264
Resolution	UVC-AI-Theta-Lens: 3264 x 2448 (4:3)
	UVC-AI-Theta-Lens-360: 2560 x 2560 (1:1)
Max. frame rate	UVC-AI-Theta-Lens: 24 FPS
	UVC-AI-Theta-Lens-360: 20 FPS
Image settings	Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay
System
Processor	Quad-core Arm Cortex -A53 based chip
Networking interface	GbE RJ45 port
Max. power consumption	12.5W
Power method	PoE
Power supply	5V DC, 0.5A
Supported voltage range	37-57V DC
Output power	5V DC, 1A per port
LED	R/G/B/W
Button	Factory reset
Mounting	Wall, ceiling mount
Operating temperature	-20 to 40degrees C (-4 to 104o F)
Operating humidity	10 to 90% noncondensing
Certifications	FCC, IC, CE
Audio
Microphone	Yes (Can be disabled)
Speaker	Yes
Power supply	5V DC, 0.9A
Software
Web application	UniFi Protect: Version 2.7.18 and later
Mobile app	UniFi Protect iOS and Android : Version 1.11.0 and later
