VS-APE3D4K100A

Overview:

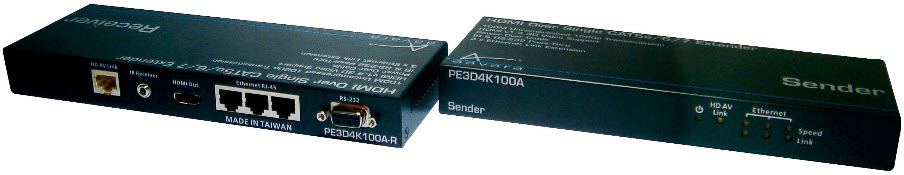

Aavara PE3D4K100A HDMI v1.4a Cat5e/6/7 Single-Cable Extender features the latest HDBase-T technology, which can support uncompressed 4Kx2K (4096x2160p, 4 times Full HD 1080p), 48bits Deep Colour, 7.1 channels audio, Ethernet Network Link and Power Over Cable transmission up to 100M (330ft) over ultra long distance by using SINGLE Cat5e/6/7 cable.

It also fully supports HDMI v1.4, allowing smooth 3D video transmission from 3D Blu-ray players to 3DTVs, with fully HDCP compliance. Built-in 3 x 100Mbps Fast Ethernet RJ-45 ports at both sender and receiver allow Internet connected withTV, Video device and PC, keeps link with Internet.

Power Over Cat5 Cable design makes Receiver side powered directly without extra power adapter to Receiver unit. Convenient IR Pass-Thru function allows video sources to be controlled via IR remote control from TV/Display which may be located some distance away.

Aavara PE4K3D100A with Video/Audio/Internet/Power/IR+Rs-232 Control all 5 plays by single-cable transmission makes it an ideal fit for interior designs without compromising on style.

Features:

• Transmit up to 100M Uncompress 1080p HDMI signal via CAT5e/6/7 Cables
• 10.2Gbps Ulrat High Performance Transmission support up to 4Kx2K Resolution
• HDMI V1.4 3D Video Format Support for 3D blu-ray and TV connection at distance
• HDMI V1.4 Audio Return Channel (ARC) support
• 36 bit Deep Color & CEC Pass Thru support
• POC (Power Over CAT5) support, Receiver no need Power Adapter
• Ethernet Extend support, 3 x 100Mbps Ethernet RJ-45 switch at both Sender & Receiver
• Full range 20~60Khz IR Pass-Thru allows to control Video Source from receiver side
• Two Way RS-232 Control communication for Display or video Source control at remote site
• DVI 1.0 & HDCP compliant
• Hassel free plug-n-play, install in sec
• HD Audio/ Video/Internet/ IR& RS232/Power, all in ONE SINGLE Cable Link
• Application: 1). Home Theater Projector Installation 2). Multi-Room HD AV & Internet Sharing 3). Conference Room Projector & Control Integration 4).Shopping Mall/ Hotel/ Pub/Club/ Restaurant HD AV Extention 5). HD AV, Internet & Control Extension Deploy 6). Pro AV Center Control Integration

Specifications:

© 2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx-computers.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications for the product series
Product Code	VS-APE3D4K100A
HDMI Spec.	1.4 Compatible
DVI Spec.	1.0 Compliant
HDCP Spec.	1.1 Compliant
Data Speed	Up to 10.2Gbps
Ethernet Network Data Spe	100/10 Base-TX
Ethernet Port	3x RJ-45 Ports at Sender & Receiver
RS-232c connector	DB-9 Stanard Female Connector, Bi-direction transfer & up to 192, 000 bps
IR Pass-Thru	Signal frequency 20-60Khz
Sender Connector	HDMI Input*1, HD AV Link(RJ-45) Port*1, Ethernet RJ-45 Port*3, RS232c*1, IR Emiiter Port*1 DC 24V Input*1
Receiver Connector	HDMI Onput*1, HD AV Link(RJ-45) Port*1, Ethernet RJ-45 Port*3, RS232c*1, IR Receiver Port*1
Operating Temperature	0-70ºC
Power Adapter	AC to DC Power Adapter 24V/1A
Material	Metal
Product Dimension	220x83x27mm
Product Weight	380g for Sender, 380g for Receiver
Optional Accessory	IR Emitter/ Receiver (included), wall mount kit(optional)
