Overview

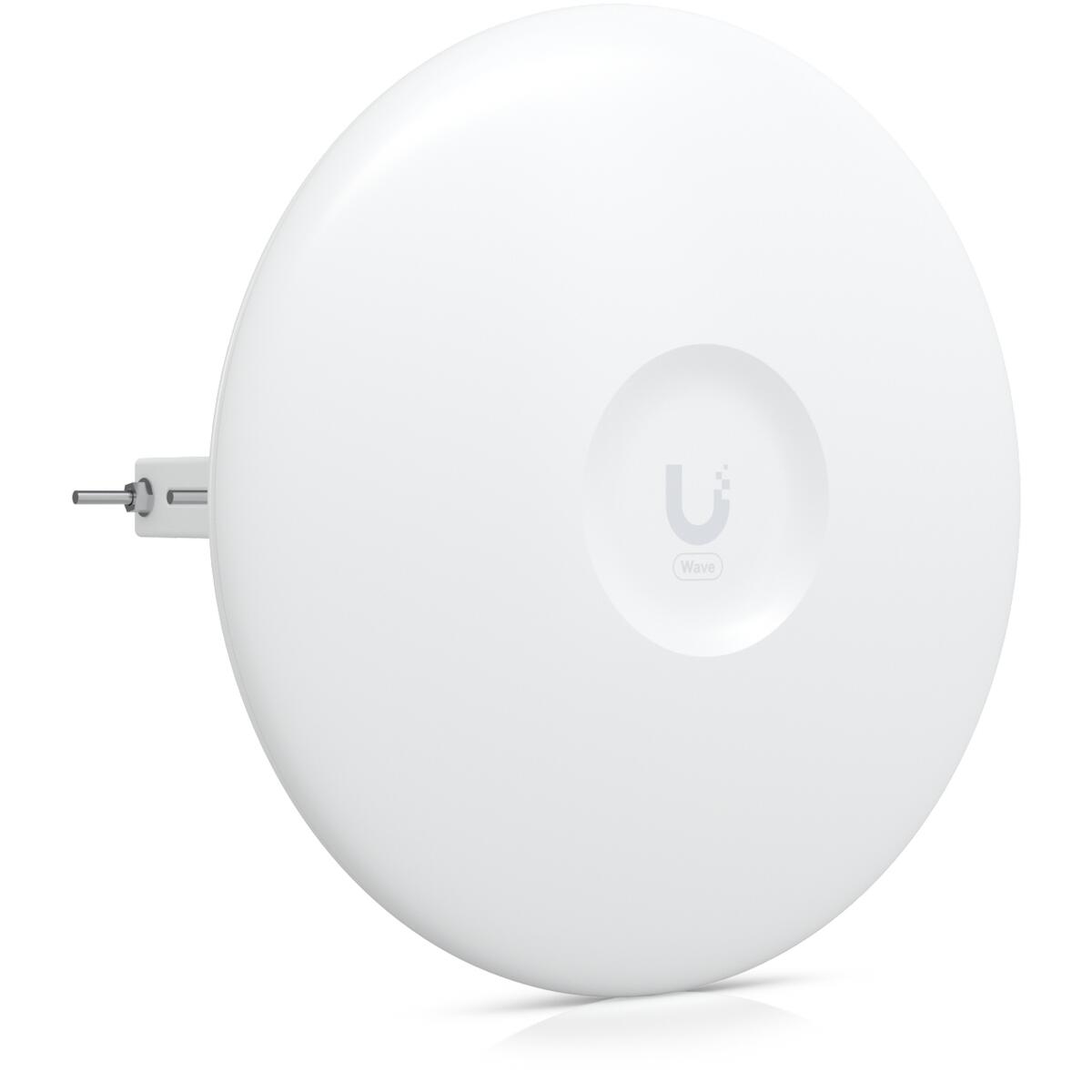

Ubiquiti UISP 60GHz / 5GHz Wave Professional Radio - WAVE-PRO
The Ubiquiti UISP 60GHz / 5GHz Wave Professional Radio (WAVE-PRO) is a high-performance CPE designed to deliver reliable long-distance Point-to-Point (PtP) and Point-to-MultiPoint (PtMP) links. Equipped with cutting-edge technology, it supports up to 15 km for PtP connections and 8 km for PtMP deployments, making it ideal for both large-scale and small-scale wireless infrastructure setups. Its impressive throughput of 5.4 Gbps (2.7 Gbps duplex) ensures seamless connectivity and high-speed data transmission.

Description

With an integrated 60 GHz radio, the Wave-PRO ensures high-capacity data transfer with ultra-low latency. It supports two 2.5 GbE RJ45 ports and one 10G SFP+ port, offering flexibility for various network configurations. The backup 5 GHz radio provides an additional layer of reliability, offering speeds of up to 800 Mbps. This product also includes built-in GPS and Bluetooth functionality, ensuring accurate alignment and ease of deployment.

Designed for resilience, the Wave-PRO features a weather-resistant build and is equipped with an ergonomic transportation handle, ensuring both durability and portability for demanding outdoor environments. The precision alignment mount further enhances installation efficiency, ensuring optimal performance and minimal downtime.

Features

Key Performance Features

• High-Capacity 60 GHz Radio : Offers exceptional throughput with a maximum data rate of 5.4 Gbps (2.7 Gbps duplex).
• Long-Distance Connectivity : Supports up to 15 km for PtP and up to 8 km for PtMP (Wave AP) deployments, providing versatile coverage options.
• Dual Radio Support : Includes a primary 60 GHz radio and a 5 GHz backup radio capable of delivering 800+ Mbps for added reliability.
• Multiple Ports : Equipped with two 2.5 GbE RJ45 ports and one 10G SFP+ port to accommodate various network setups and scalability.
• Built-In GPS & Bluetooth : Facilitates easy installation with precision alignment and enhanced network management.
• Durable and Portable Design : Weather-resistant construction with an ergonomic transportation handle for on-the-go setups.
• Precise Alignment : Features a mount designed for easy and accurate antenna alignment, ensuring peak signal strength.

Superior Connectivity for Outdoor Deployments
Designed for outdoor and remote-area wireless infrastructure, the Wave-PRO provides high-capacity connectivity for businesses and service providers that need reliable backhaul or fixed wireless solutions. Whether it's for Point-to-Point or Point-to-MultiPoint setups, this device offers unmatched performance, scalability, and ease of deployment.

Reliable Backup and Redundancy
The Wave-PRO ensures continuous operation even in adverse conditions, thanks to its backup 5 GHz radio that kicks in when the 60 GHz link encounters interference or environmental obstacles. This redundancy guarantees sustained service and improves the overall reliability of your network.

Efficient and Easy Deployment
With features like built-in GPS for easy alignment and an ergonomic handle for portability, the Wave-PRO simplifies installation and ensures minimal setup time. The precision alignment mount helps ensure that the antenna is always optimally positioned for maximum throughput and reliability.

Ideal for High-Demand Networks
For enterprises or service providers that require robust, high-capacity wireless links, the Ubiquiti UISP 60GHz / 5GHz Wave Professional Radio is an essential tool. Whether you need to cover long distances or build scalable networks, this radio offers the speed, range, and flexibility necessary to meet the growing demands of modern wireless communication.

Specifications

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx-computers.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	Wave-Pro
Mechanical
Dimensions	Ø424.4 x 166.2 mm (Ø16.7 x 6.5")
Weight	Without mount: 2.8 kg (6.2 lb)
	With mount: 4 kg (8.8 lb)
Enclosure materials	Aluminum alloy, UV stabilized plastic
Mount material	Stainless steel
Pole mount diameter	25 to 76.2 mm (1 to 3") on pipe outer diameter
Wind loading	369 N at 200 km/h (83 lbf at 125 mph)
Weatherproofing	IPX6
Hardware
Processor	Quad-core ARM Cortex -A53 at 1.4 GHz
Memory	DDR3L 512 MB
Networking interface	(2) 2.5 GbE RJ45 ports
	(1) 10G SFP+ port
Max. power consumption	26W
Power method	Passive PoE 4-pairs (1, 2+, 3, 6-) (4, 5+, 7, 8-)
	Passive PoE 2-pairs (4, 5+, 7, 8-), for 44-54V DC only
Power supply	48V DC, 0.65A, 2.5 GbE PoE adapter (included)
Supported voltage range	44-54V DC
	22-27V DC
GPS	Yes
Button	Factory reset
LEDs	Power, (2) Ethernet, SFP+, GPS, link
Operating temperature	-40 to 60degrees C (-40 to 140degrees F)
Operating humidity	5 to 95% noncondensing
Certifications	FCC, IC, CE
Software
Operating mode	PtP, PtMP station
Ubiquiti specific features	Integrated 60 GHz radio, discovery protocol, Wave technology
Services	UISP, ping watchdog, NTP client, SNMP
Tools	Antenna alignment, discovery utility, ping, trace route, speed test
Network	Bridge/Router* mode
	*Router is available in PtMP station mode only.
Application requirements	UISP: Version 2.3.0 and later
System
Total throughput	5.4 Gbps (2.7 Gbps duplex)
Max. range	PtP: Up to 15 km
	PtMP: Up to 8 km (Wave AP), up to 6 km (Wave AP Micro)
Encryption	WPA2-PSK (AES)
RF
Operating frequency	57 to 71 GHz
	*Depends on regulatory region.
Channel bandwidth	2160, 1080 MHz
Operating channels	58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200 MHz
	*Depends on regulatory region.
Modulation	16QAM, QPSK
Antenna gain	46 dBi
Polarization	Vertically linear
Beamwidth	Azimuth: 3 dB 1.3degrees
	Elevation: 3 dB 1.3degrees
Back-Up RF
WiFi Standard	802.11ax (WiFi 6)
Operating frequency
US/CA	U-NII-1 5150 - 5250 MHz
	U-NII-2A 5250 - 5350 MHz
	U-NII-2C 5470 - 5725 MHz
	U-NII-3 5725 - 5850 MHz
Worldwide	5150 - 5875 MHz
	*Depends on regulatory region.
Channel bandwidth	20, 40, 80 MHz
Max. conducted TX power	27 dBm
Modulation	BPSK (1⁄2), QPSK (1⁄2), QPSK (3⁄4), 16QAM (1⁄2), 16QAM (3⁄4), 64QAM (2⁄3), 64QAM (3⁄4), 64QAM (5⁄6), 256QAM (3⁄4), 256QAM (5⁄6), 1024QAM (3⁄4), 1024QAM (5⁄6)
Antenna gain	22 dBi
Polarization	Dual-linear
Beamwidth	Azimuth: 3 dB 8degrees
	Elevation: 3 dB 8degrees
Cross-pol isolation	20 dB
LEDs
Power	Flashing white: bootup in progress
	White: not connected to UISP application
	Blue: connected to UISP application
	Flashing blue: locate in progress
	Blue/white: firmware upgrade in progress
Ethernet	(2) Flashing blue: Ethernet traffic detected
SFP+	(1) Flashing blue: SFP+ traffic detected
Links	White: 5 GHz link
	Blue: 60 GHz link
GPS	Blue: receiving at least (4) GPS satellite signal
