XA1920ME10063

Overview

High-Performance Enterprise SATA SSD for Demanding Workloads
Designed for consistent performance and reliable data handling, the Seagate Nytro 1000 2TB 2.5 inch SATA SSD delivers a practical upgrade path for enterprise environments. Its SATA 6Gb/s interface allows straightforward deployment into existing infrastructure, making it suitable for data centers seeking improved responsiveness without large-scale hardware changes. With optimized endurance and efficient power usage, it supports continuous operation while helping reduce operational overhead.

Description

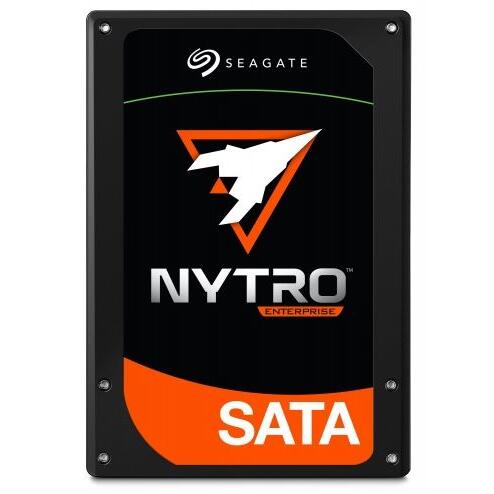

The Seagate Nytro 1000 1.92TB SSD (part number XA1920ME10063 ) is built for enterprise applications that demand dependable speed and endurance. Leveraging 3D TLC NAND and Seagate DuraWrite technology, it enhances data efficiency while maintaining strong read and write performance. The drive is engineered for read-intensive and mixed workloads, offering consistent throughput, low latency, and protection against data loss during power interruptions. Its compact 7mm 2.5 inch form factor ensures compatibility with a wide range of server and storage systems.

Features

Performance Built for Real-World Applications
This SSD is tuned to deliver stable performance under sustained workloads. It is particularly effective in environments requiring fast random access, such as virtualization, cloud computing, and database operations. By maintaining consistent speeds, it helps prevent bottlenecks that can affect application responsiveness.

Key performance highlights include:

• Sequential read speeds up to 560 MB/s and write speeds up to 535 MB/s
• Random read performance up to 94,000 IOPS and write up to 50,000 IOPS
• Low latency with fast response times for transactional workloads

Flexible Deployment and Efficiency Gains
The SATA interface simplifies integration into existing systems, reducing the need for costly upgrades. At the same time, the drive's efficient power consumption contributes to lower energy usage in always-on environments.

Operational advantages:

• Easy drop-in upgrade for SATA-based systems
• Reduced power consumption for 24x7 operation
• Lower cooling requirements and improved system efficiency

Data Protection and Reliability Architecture
Enterprise storage requires robust safeguards, and this model integrates multiple layers of protection to ensure data integrity. Built-in power loss protection helps prevent data corruption during unexpected outages, while advanced firmware technologies maintain consistent reliability.

Reliability and protection elements:

• Power loss data protection circuitry
• End-to-end data integrity via SHIELD and RAISE technologies
• Nonrecoverable read error rate of 1 per 10E17 bits read
• 2 million hour MTBF rating for long-term stability

Endurance and Workload Capability
With a rating of 3 drive writes per day, the drive is suited for demanding enterprise environments that require sustained write activity. This makes it appropriate for mixed-use workloads where both read and write operations are frequent.

Endurance metrics:

• 3 DWPD workload rating
• Total bytes written up to 10,500 TB

Technical Details at a Glance

• Capacity: 1.92TB
• Interface: SATA 6Gb/s
• NAND type: 3D TLC
• Form factor: 2.5 inch, 7mm thickness
• Part number: XA1920ME10063
• Active power consumption: 3.4W average
• Idle power consumption: 1.2W

Physical and Environmental Parameters
The compact design allows seamless installation into standard drive bays, while its durability ensures stable operation across a wide range of conditions.

• Dimensions: 100.25mm depth, 70.1mm width, 7mm height
• Weight: 77g
• Operating temperature: 0degrees C to 70degreesC
• Non-operating temperature: -40degrees C to 85degreesC
• Shock resistance: 1000 G at 0.5ms

Scalable Storage with Enterprise Focus
The Seagate Nytro 1000 series provides a balance between performance, endurance, and cost efficiency. The XA1920ME10063 model stands out as a reliable solution for organizations needing consistent SSD performance without transitioning to more complex interfaces. It addresses the core requirements of modern data workloads while maintaining compatibility and operational simplicity.

Specifications

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx-computers.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	XA1920ME10063
Capacity	1.92TB
Standard Model Numbers	XA1920ME10063
Seagate Secure SED Model (TCG Enterprise)	XA1920ME10083
Seagate Secure SED Model (TCG OPAL)	XA1920ME10103
Features
Interface	SATA 6Gb/s
NAND Flash Type	3D TLC
Form Factor	2.5 in x 7mm
Performance
Sequential Read (MB/s) Sustained, 128KB1	560
Sequential Write (MB/s) Sustained, 128KB1	535
Random Read (IOPS) Sustained, 4KB QD321	94000
Random R70R (IOPS) Sustained. 4KB QD321	65000
Random Write (IOPS) Sustained, 4KB QD321	50000
Average Read Latency (μs), 4KB QD11	160
Average Write Latency (μs), 4KB QD11	35
Endurance/Reliability
Lifetime Endurance (Drive Writes per Day)	3
Total Bytes Written (TB)	10500
Nonrecoverable Read Errors per Bits Read	1 per 10E17
Mean Time Between Failures (MTBF, hours)	2000000
Power Management
+5/+12V Overall Average Active Power (W)2	3.4
Average Idle Power (W)	1.2
Environmental
Temperature, Operating Internal (degreesC)	0degreesC - 70degreesC
Temperature, Nonoperating (degreesC)	-40degreesC - 85degreesC
Temperature Change Rate/Hr, Max (degreesC)	20
Shock, 0.5ms (Gs)	1000
Physical
Height (mm/in, max)	7mm/0.276in
Width (mm/in, max)	70.1mm/2.76in
Depth (mm/in, max)	100.25mm/3.947in
Weight (g/lb)	77g/0.169lb
Carton Unit Quantity	10
