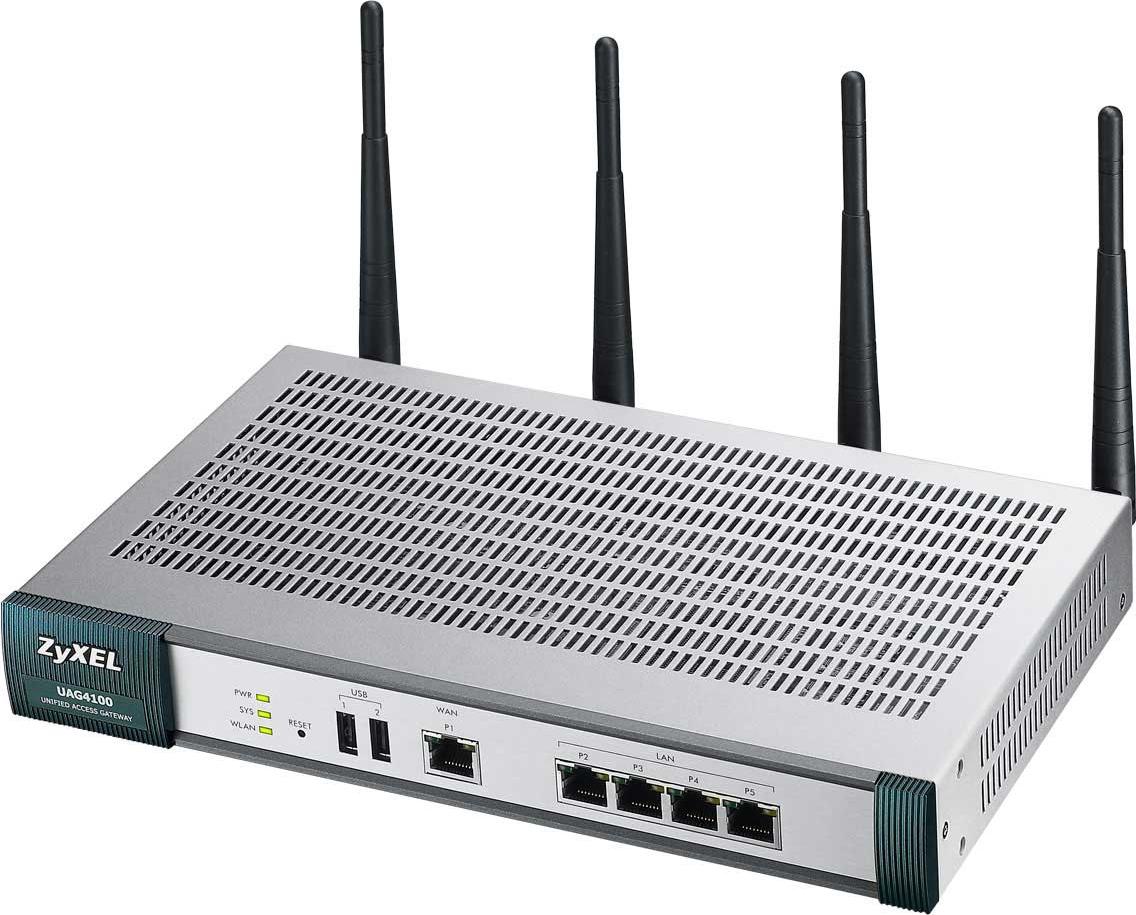

UAG4100-P Zyxel UAG4100-P unified Access Gateway with Printer
Images are for illustrative purposes and actual product may differ.
UAG4100-P Security GatewayZyxel
UAG4100-P information and overview
Zyxel UAG4100-P unified Access Gateway with Printer, 4x Gigabit LAN, 1x WAN, 2x USB ports, Ticket Printer support, 200 Mbps routing Throughput, 802.11a/b/g/n, 4x (Detachable) antennas, 187 Mbps (2.4 GHz) & 190 Mbps (5 GHz) Wireless Throughput
Not for sale. This is a discontinued product.
Kindly search for an alternative on our site
Subject to correction, the product was last sold 2019-10-11, where the last unit was sold for R 20120, which may have been a final clearance price.
Specifications & more information about UAG4100-P, Security Gateway manufactured by Zyxel
Product information notice: Some specifications may describe a broader product range and may not apply to this exact model. Use the product summary above as the primary model reference. Bundled software may be trial software and can require a separate licence.
Overview:
The ZyXEL UAG4100 Unified Access Gateway is a next-generation, all-in-one wireless hotspot/access gateway designed to fulfil the hospitality challenges of both today and tomorrow. In addition to account management, billing, and data retention capabilities, the UAG4100 offers premium features-like 802.11 a/b/g/n dual-radio Wi-Fi and a built-in WLAN controller-to deliver better scalability, capacity, and performance to fulfil tomorrows guest access demands. The built-in WLAN controller can manage up to 16 APs, which makes the UAG4100 ideal for multi-room network deployments in smaller accommodation facilities like small hotels, hostels, or B&Bs (bread and breakfast). Used with the SP350E ticket printer, on the other hand, the UAG4100 is the perfect solution for single-location Wi-Fi hotspot deployments in hotel lobbies, restaurants, or cafes.
Features: -
IEEE 802.11 a/b/g/n dual-radio (2.4 GHz and 5 GHz) design - Supports 200 concurrent users by default and up to 300 via license upgrade
- Integrated account generator, Web-based authentication portal and billing system
- RADIUS Client, walled garden as well as advertising URL links and forwarding to portal
- Per account bandwidth management
- Supports multiple device login per account
- SP350E Service Gateway Printer enables one-click account and billing generation
- SMS ticketing with ViaNett protocol support
- Built-in WLAN controller (supports 8 APs by default and up to 16 APs via license upgrade)
- Facilitates compliance with data retention regulations
- SP350E Service Gateway Printer enables one-click account and billing generation
Specifications: | ©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx-computers.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered. | | Specifications | | Product Code | Z-UAG4100-P | | Model | UAG4100 | | Hardware Specifications | | 10/100/1000 Mbps RJ-45 ports | 4 x LAN, 1 x WAN | | USB ports | 2 | | Ticket printer support | Yes (up to 10 printers) | | System Capacity & Performance | | Routing throughput (Mbps) | 200 | | Concurrent logins (default/max.) | 200/300 | | Max. concurrent sessions | 40000 | | DHCP pool size | 4096 | | Built-in account generator | -> | | -> Static accounts | 50 | | -> Dynamic accounts | 2000 | | WLAN Management | | Built-in WLAN controller | Yes | | Managed AP number (default/max.) | 8/16 | | SSID | 8 | | Wireless Specifications | | Standard compliance | 802.11 a/b/g/n | | Radio | 2 | | Antennas | 4 (detachable) | | Wireless throughput (Mbps) | 187 (2.4 GHz), 190 (5 GHz) | | Max. output power (2.4 GHz) | 802.11b: 12.5 dBm @ 11 Mbps | | 802.11g: 12 dBm @ 54 Mbps | | 802.11n: 12 dBm @ 20 MHz | | 802.11n: 13 dBm @ 40 MHz | | Max. output power (5 GHz) | 802.11a: 22.5 dBm @ 54 Mbps | | 802.11n: 23 dBm @ 20 MHz | | 802.11n: 23 dBm @ 40 MHz | | Radio sensitivity (2.4 GHz) | 802.11b: ≤ -90 dBm @ 11 Mbps | | 802.11g: ≤ -79 dBm @ 54 Mbps | | 802.11n: ≤ -72 dBm @ 20 MHz | | 802.11n: ≤ -70 dBm @ 40 MHz | | Radio sensitivity (5 GHz) | 802.11a: ≤ -79 dBm @ 54 Mbps | | 802.11n: ≤ -72 dBm @ 20 MHz | | 802.11n: ≤ -68 dBm @ 40 MHz | | Power Requirements | | Power input | 12 V DC, 3 A max. | | Max. power consumption (watt) | 28 | | Physical Specifications | | Item dimensions (WxDxH) (mm/in.) | 272 x 171 x 36/10.71 x 6.73 x 1.42 | | Item weight (kg/lb.) | 1.46/3.22 | | Package dimensions (WxDxH) (mm/in.) | 416 x 247 x 71/16.38 x 9.72 x 2.80 | | Package weight (kg/lb.) | 2.3/5.07 | | Included accessories | Power adapter | | Rack mounting kit | | Antenna | | Environmental Specifications | | Operating temperature | 0°C to 40°C/32°F to 104°F | | Storage temperature | -30°C to 70°C/-22°F to 158°F | | Operating humidity | 10% to 90% (non-condensing) | | Storage humidity | 10% to 90% (non-condensing) | | MTBF (hr) | 497644 | | Certifications | | EMC | FCC Part 15 (Class B), CE EMC (Class B), C-Tick (Class B), BSMI | | Safety | LVD (EN60950-1), BSMI |
