ZSK-EH-60W-AC-PoE-EU Siklu 60W 48V PoE Adapter

ZSK-EH-60W-AC-PoE-EU

Click to view larger image

R 2,025.00

inc. VAT

In Stock

Add To Cart

Rate

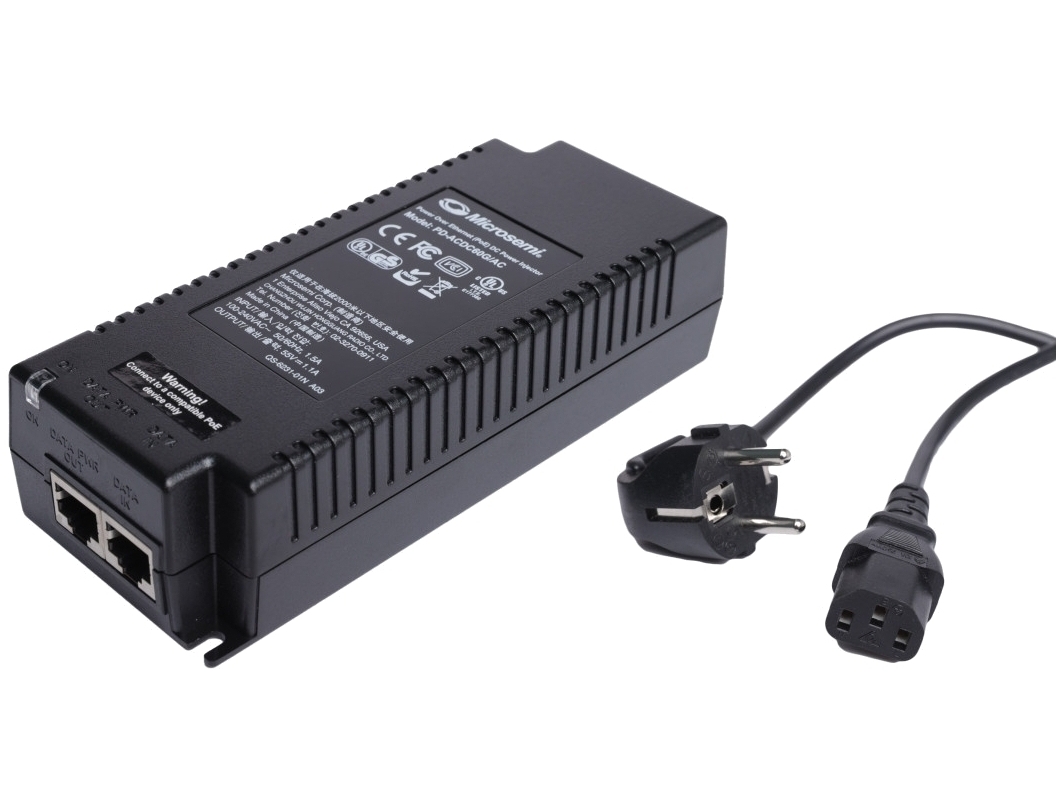

Siklu 60W 48V PoE Adapter

Images are for illustrative purposes and actual product may differ.

Product resourcesProduct PDF

ZSK-EH-60W-AC-PoE-EU

Power over Ethernet POE

Siklu

ZSK-EH-60W-AC-PoE-EU information and overview

Siklu 60W 48V PoE Adapter, AX-IN-60W-AC-PoE-EU, 10/100/1000 Mbps pass through Data rates

Specifications & more information about ZSK-EH-60W-AC-PoE-EU, Power over Ethernet POE manufactured by Siklu

Specifications & downloads View specification Printable PDF

Product information notice: Some specifications may describe a broader product range and may not apply to this exact model. Use the product summary above as the primary model reference. Bundled software may be trial software and can require a separate licence.

Overview:

Microsemis PD-ACDC60G single port power injector offers a compact and cost-effective power solution for high power WLAN access points, network cameras and other IP terminal installations.

The ACDC60G converts AC power to 55VDC; the DC power is then provided over the Ethernet cable. The PD-ACDC60G supports up to 10/100/1000Mbps pass through data rates and includes hardware protection such as Overload protection and Short-Circuit protection. The single port injector can be powered via universal AC input and can provide up to 60W on 4 pairs.

Features:

Output power of 60W over 4-pairs is guaranteed
Supports 10/100/1000Base-T applications
Plug-and-play installation
Compact design fits easily in WLAN access point and
IP camera installations
Not 802.3af/at compliant
For OEM private label sales only

Specifications:

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx-computers.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	ZSK-EH-60W-AC-PoE-EU
No. of Ports	1
Pass Through Data Rates	10/100/1000 Mbps
Power over Ethernet	Pin Assignment and Polarity:
Output	Data Pairs 1/2 (-) and 3/6 (+)
	Spare Pairs 7/8 (-) and 4/5 (+)
	Output Power Voltage: 55 VDC
	User Port Power: 60W over 4-pairs (Guaranteed)
Input Power	AC Input Voltage: 100 to 240 VAC
Requirements	AC Input Current: 1.5A @100-240 VAC
Requirements	AC Frequency: 50 to 60 Hz
Dimensions	62 mm (W) x 38 mm (H) x 151 mm (L)
Dimensions	2.44 in. x 1.5 in. x 5.94 in
Weight	Bare unit: .71 lbs (320g)
Indicators	AC Power: Yellow
Indicators	Channel Power Indicator: Green
Connectors	Shielded RJ-45, EIA 568A and 568B
Environmental	Operating Ambient Temperature:
Conditions	14º to 104ºF (-10ºC to 40ºC) @60W
	14º to 131ºF (-10ºC to 55ºC) @30W
	Operating Humidity:
	Maximum 90%, Non-condensing
	Storage Temperature:
	-4º to 158ºF (-20º to 70ºC)
	Storage Humidity:
	Maximum 95%, Non-condensing
Reliability	MTBF: 240,000 hrs. @25ºC
Thermal Rating	30 BTU/Hr (@100Vac)
Regulatory	RoHS Compliant
Regulatory	WEEE Compliant, CE
Electromagnetic	FCC Part 15, Class B
Emission & Immunity	EN 55022 Class B (Emissions)
Emission & Immunity	EN 55024 (Immunity), VCCI
Safety Approvals	UL/cUL Per EN 60950-1
Safety Approvals	GS Mark Per EN 60950-1
