CL-W360-PL12SW-A

Overview:

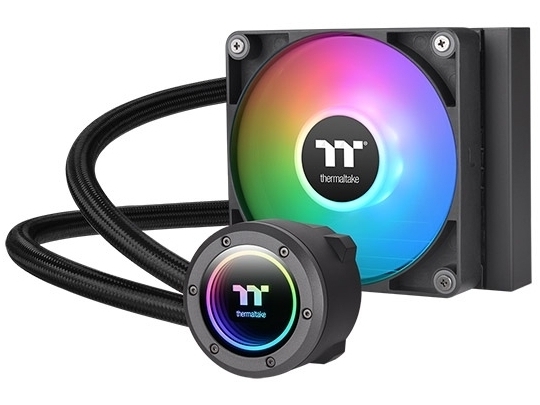

TH120 V2 ARGB Sync All-In-One Liquid Cooler
CL-W360-PL12SW-A

TH120 V2 ARGB has a new industrial cap with an infinity mirror light design, bringing a new vibe to the TH series. Equipped with one CT120 ARGB fan, the TH120 V2 ARGB is suitable for small chassis that can fit 120mm AIOs, and for those who seek to control lighting effects through 5V motherboard-controlled software.

Features:

No matter the build, Weve got you covered
The TH V2 ARGB Series is now ready for all types of builds; the series has three 120mm fan models, including the TH 120/ 240/ 360 V2 ARGB, and two 140mm fan models, including TH 280/ 420 V2 ARGB.

New Version, New Design
TH V2 ARGB was given an industrial look to freshen up the 360-degree rotational cap. Adding Infinity Mirror Lighting to this series can bring more diverse visual effects to the build and gives more depth than it looks.

Sync with CT120 ARGB Fans
Utilizing the CT120 ARGB Fans on this model, not only you can match up to some of our chassis pre-installed fans, but you can unify your fans with your build!
The CT120 ARGB provides an 57.05 CFM air flow with 2.23 mm-H2O static pressure while maintaining 25.8 dB-A noise level.

Enhanced Cooling Surface With A Compact Design
The TH V2 ARGB Series has a 27mm slim radiator with a thickened 20mm copper chamber, ensuring the same easy installation but with even better cooling performance.

Keep it COLD with Copper
The high-performance copper base plate accelerates heat conductivity. The high-quality and reliable pump enables maximum water circulation, keeping the copper plate continuously cool. The low evaporation tube effectively decreases the loss of coolant; therefore, no refill is required.

Any CPU Can Be the Right CPU
The package includes brackets for the latest Intel and AMD CPU sockets to be compatible with the most modern CPU platforms, including the latest Intel LGA1700 and AMD AM5 CPUs.

Compatibility list:
Intel: LGA 2066/2011/1700/1200/1156/1155/1151/1150
AMD: AM5/AM4/AM3+/AM3/AM2+/AM2

Sync with Motherboard RGB Software
Designed to synchronize with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, and ASRock Polychrome. It supports motherboards with a 5V addressable RGB header, allowing you to control the lights directly from the software mentioned above without installing any extra lighting software or controllers. For more details, please visit ASUS, GIGABYTE, MSI, and ASRock official websites.

Specifications:

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx-computers.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	CL-W360-PL12SW-A
P/N	CL-W360-PL12SW-A
PUMP	Speed : PWM 1500~3300 R.P.M
	Rated Voltage : 12 V & 5V
	Rated Current : 0.43 A & 0.32 A
	Power Input : 5.16 W & 1.6 W
	Connector : 2510-4 Pin / 5V ARGB header-3 Pin
WATER BLOCK	Material : Copper
FAN	Dimension : 120 x 120 x 25 mm
	Speed : PWM 500~2000 R.P.M
	Noise Level : 25.8 dB-A
	Rated Voltage : 12 V & 5V
	Rated Current : 0.11 A & 0.31 A (one fan)
	Power Input : 1.32 W & 1.55 W (one fan)
	Max. Air Flow : 57.05 CFM
	Max. Static Pressure : 2.23 mm-H2O
	Connector : 2510 - 4 Pin PWM, 5V ARGB header - 3 Pin
	Bearing Type : Hydraulic Bearing
	Life expectation : 40,000 hrs, 25°C
TUBE	Length : 460 mm
	Material : Rubber
RADIATOR	Dimension : 157 x 120 x 27 mm
	Material : Aluminum
COMPATIBILITY	Intel LGA 1700/1200/1156/1155/1151/1150
	AMD AM5/AM4/AM3+/AM3/AM2+/AM2
