DS-D6050UN-DP

Overview

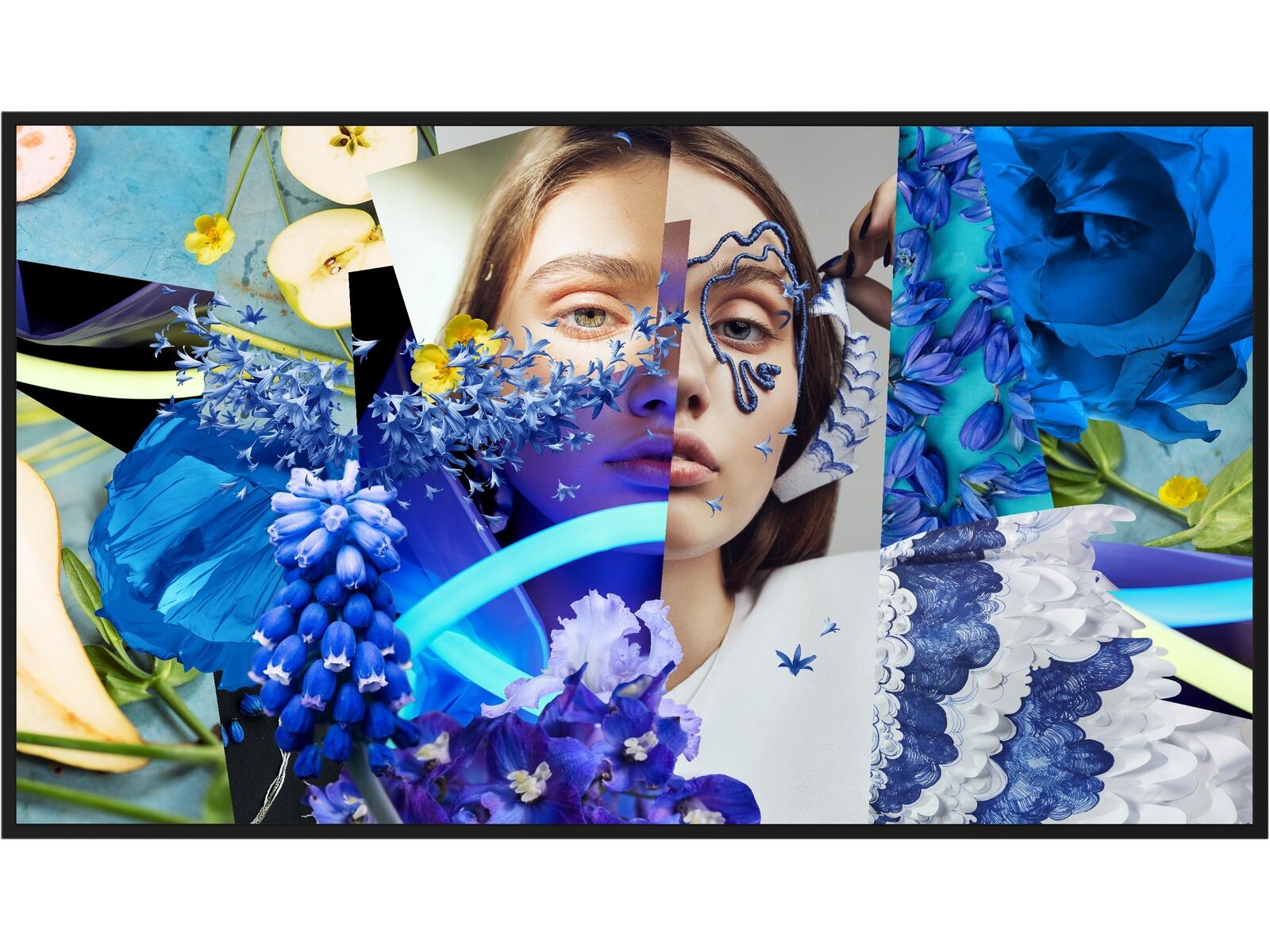

Hikvision DS-D6050UN-DP 50 Inch 4K Digital Signage Display
The Hikvision DS-D6050UN-DP delivers a streamlined 50 inch commercial display designed for continuous operation and high-impact visual communication. Built with a slim frame and durable all-in-one construction, it integrates an industrial-grade A+ panel that enhances image clarity and colour consistency. The display supports a wide range of media formats, enabling dynamic content delivery that includes video, audio, scrolling text, live feeds, and web-based material. With centralized management capabilities, it allows remote scheduling, monitoring, and control across single or multiple screens, making it suitable for retail, corporate, hospitality, and public environments.

Description

This 50 inch 4K digital signage solution combines sharp Ultra HD resolution with reliable 24/7 performance, ensuring consistent content delivery in demanding environments. Its Android 13 platform enables smooth media playback and flexible content management, while built-in connectivity options support easy integration into existing networks. Designed for both landscape and portrait installation, it offers versatility for various signage applications. The combination of high brightness, wide viewing angles, and robust system architecture makes it a practical choice for businesses seeking efficient and scalable display solutions.

Features

Visual Performance and Display Quality
The 3840 x 2160 resolution ensures crisp detail and clarity, supported by a 500 nits brightness level suitable for well-lit indoor environments. A 178 degree viewing angle maintains image integrity from multiple positions, while the 10 bit colour depth and 85 percent NTSC gamut deliver accurate and vibrant colour reproduction. The integrated image enhancement engine further refines contrast and colour balance for a more polished visual output.

Key display attributes include:

• 50 inch panel with Ultra HD resolution for detailed visuals
• E-LED backlighting for consistent brightness and efficiency
• 1200:1 contrast ratio for balanced depth and clarity
• 8 ms response time for smooth motion handling
• 60 Hz refresh rate for stable playback

Smart Content Management and Control
The system supports flexible scheduling and playback configurations, allowing content to be arranged by time, date, or loop cycles. Multiple media zones can be configured on a single screen, enabling simultaneous display of different content types.

Management capabilities include:

• Remote control of power, brightness, and volume
• Centralized content distribution across multiple displays
• Real-time preview and screenshot monitoring
• USB-based local updates alongside remote deployment
• Multi-level user access control with customizable permissions

Security is reinforced through layered validation of content and encrypted data transmission, reducing the risk of unauthorized access or accidental publishing.

System Performance and Storage
Running on Android 13, the display is powered by a quad core Cortex-A55 processor with a 1.92 GHz clock speed. It is equipped with 4 GB RAM and 32 GB internal storage, providing sufficient capacity for smooth application performance and media storage.

Supported formats include a wide range of video and audio codecs, ensuring compatibility with most commercial media assets.

Connectivity and Integration Options
The DS-D6050UN-DP (Part Number DS-D6050UN-DP) offers extensive connectivity for seamless integration into professional environments.

Core interfaces:

• 3 x HDMI inputs and 1 x DisplayPort input
• Line out and dual 10 W speakers
• RJ45 LAN port with dual band WiFi support
• RS232 input and output for control systems
• USB 2.0 and USB 3.0 ports for media and peripherals
• Bluetooth 5.0 for wireless connectivity

Installation and Physical Design
The slim profile and lightweight construction support straightforward wall mounting in both horizontal and vertical orientations. Its clean design allows it to blend into modern commercial spaces while maintaining a professional appearance.

Physical details:

• Dimensions without mount: 1125.8 x 646.8 x 41 mm
• Weight: 12.6 kg net
• Durable plastic enclosure with narrow bezels

Power and Operating Conditions
Engineered for efficiency, the display operates within a wide voltage range and maintains low standby consumption.

Operational parameters:

• Power consumption: 90 W typical, 150 W maximum
• Standby consumption: less than or equal to 0.5 W
• Operating temperature: 0 to 40 degrees C
• Humidity tolerance: 10 percent to 80 percent

What's Included in the Box

• Digital signage display
• Wall mounting backboard with bolts
• Power cable
• RS232 cable
• Remote control
• User documentation and setup guides

Specifications

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx-computers.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	DS-D6050UN-DP
Color Temperature	10000K
Resolution	3840 x 2160
Active Display Area	1095.84 (H) mm x 616.411 (V) mm
Pixel Pitch	0.28539 (H) mm x 0.28539 (V) mm
Backlight	E-LED
Viewing Angle	178degrees(H)/178degrees(V)
Brightness	500 cd/m²
Contrast Ratio	1200:1
Color Depth	10 bit (8 bit + FRC)
Response Time	8 ms
Color Gamut	85% NTSC
Reliability	7 x 24h
Refresh Rate	60 Hz
Haze	25%
Built-in System
Operation System	Android 13
Processor	Cortex-A55, 4-core, main frequency 1.92 GHz
Memory	4 GB
Built-in Storage	32 GB EMMC
Video Format	AV1, H.265, H.264/AVC, MVC, VP9, AVS2, MPEG4, MPEG2, MPEG1, VP8, MJPEG, H263
Audio Format	MPEG, APE, FLAC, AAC, OGG, AIF, AIFF, ALAW, ALAC
Interface
Video & Audio Input	HDMI x 3, DP x 1
Video & Audio Output	LINE OUT x 1, speaker (6Ω 10 W) x 2
Network Interface	RJ45 x 1, Wi-Fi (2.4G/5G, 802.11 a/b/g/n/ac/ax) x 1, RS232 in x 1, RS232 out x 1
Data Transmission Interface	USB 2.0 x 1, USB 3.0 x 1, BT 5.0 x 1
Power
Input Voltage	100 to 240 VAC, 50/60 Hz
Standby Consumption	≤ 0.5 W
Power Consumption	90W(typ), 150W(max)
Working Environment
Working Temperature	0 degreesC to 40 degreesC (32 degreesF to 104 degreesF)
Working Humidity	10% to 80% RH (Condensation)
Storage Temperature	-20 degreesC to 60 degreesC (-4 degreesF to 140 degreesF)
Storage Humidity	10% to 90% RH (Condensation)
General
Material Type	DAT, VOB, TS, AVI, MKV, MOV, 3GP, FLV, ASF, MP3, WMA, OGG, JPG, BMP, PNG
Mounting Type	Wall mounting (horizontally or vertically)
Product Dimensions (W x H x D)	1125.8mm x 646.8mm x 41 mm (without wall-mounted backboard)
	1125.8mm x 646.8mm x 71 mm (with wall-mounted backboard)
Package Dimensions (W x H x D)	1250 mm x 760 mm x 128 mm
Net Weight	12.6 kg
Gross Weight	17.3 kg
Packing List	Digital signage x 1, wall-mounted backboard (including package of mounting bolts) x 1, power cord for europe x 1, RS232 cable x 1, remote control x 1, user manual x 1, quick start guide x 1, Regulatory Compliance and Safety Information x 1, logo stickers x 1, energy efficiency label x 1
