Overview

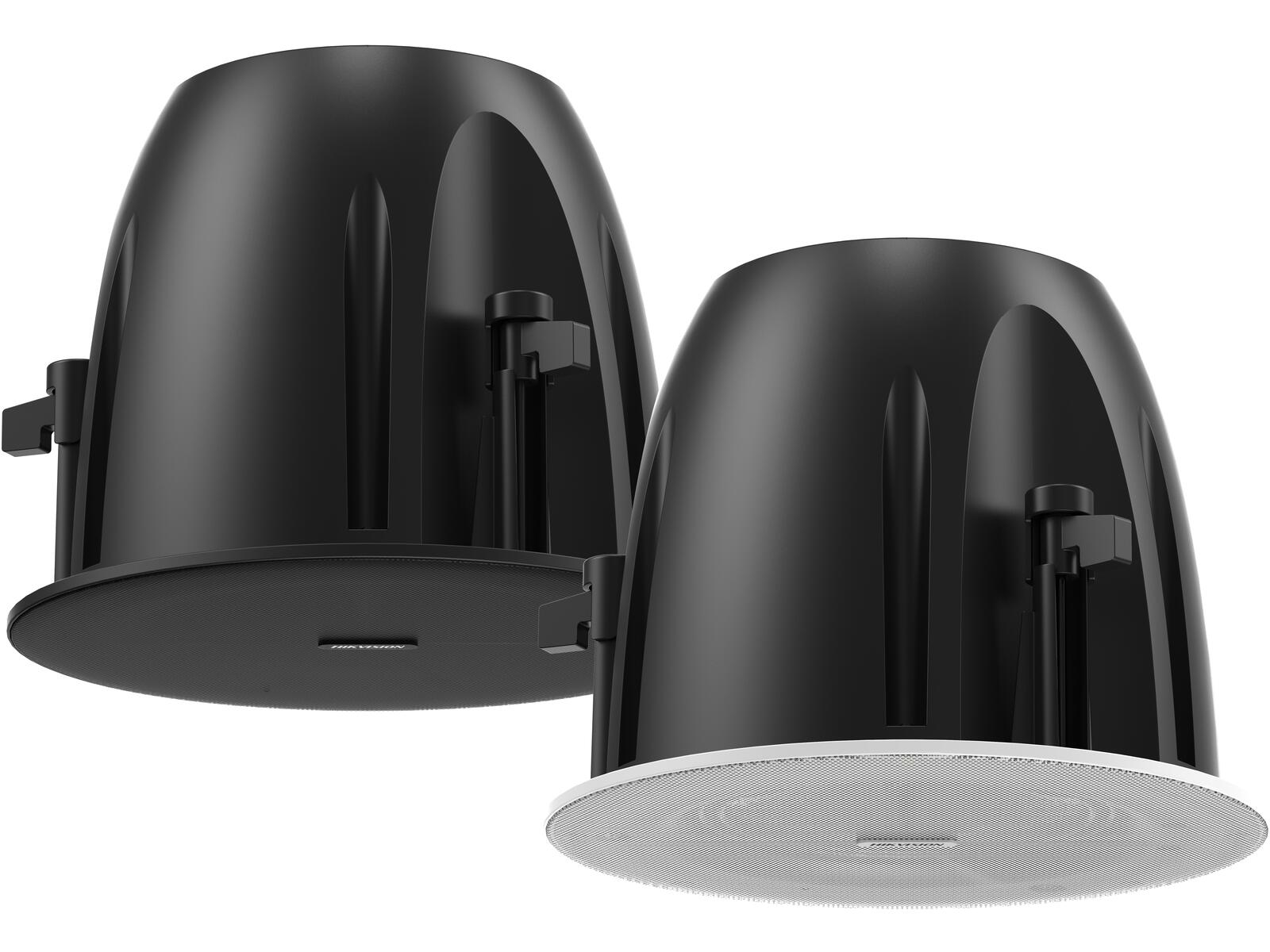

Hikvision DS-QAZ0630G1 30W Frameless Ceiling Speaker
The Hikvision DS-QAZ0630G1 is an analog frameless ceiling speaker designed to deliver clear and balanced audio for commercial, professional and public address installations. It combines a 6.5-inch woofer with a 1.0-inch tweeter to provide a wide frequency response from 80 Hz to 20 kHz, with 92 dB sensitivity and a maximum SPL of 104 dB. The speaker supports 100V, 70V and 8 ohm audio systems, making it suitable for a variety of distributed audio applications. The white or black finish allows the speaker to blend into different installation environments.

Description

The Hikvision DS-QAZ0630G1 30W ceiling speaker provides reliable audio reproduction in a discreet frameless design. Its 6.5-inch woofer handles the main audio range while the 1.0-inch tweeter helps deliver clearer high frequencies. With a conical 90 degree coverage pattern, the speaker is suited to distributing sound across indoor areas such as offices, retail spaces, schools, commercial buildings and other public address environments.

The constant voltage design supports multiple power settings, allowing installers to select the appropriate output for the audio system. It can operate at 100V or 70V, while an 8 ohm connection is also available for compatible audio installations.

Features

Clear Audio for Ceiling Installations
The combination of a 6.5-inch woofer and 1.0-inch tweeter provides a balanced sound profile across speech, background music and general public address applications. The 80 Hz to 20 kHz frequency response helps reproduce both lower and higher frequencies, while the 92 dB sensitivity allows the speaker to produce strong audio output from relatively low amplifier power.

Key audio characteristics include:

• Rated power: 30W
• Total harmonic distortion: 1% or less
• Sensitivity: 92 dB at 1 m, 1 W
• Maximum acoustic pressure: 104 dB
• Frequency response: 80 Hz to 20 kHz at -10 dB
• Coverage angle: 90 degree conical coverage
• Speaker unit: 1 x 1.0-inch tweeter and 1 x 6.5-inch woofer

Flexible 70V and 100V Audio Support
The DS-QAZ0630G1 supports common constant voltage audio systems, making it practical for distributed speaker installations where multiple speakers are connected across larger areas. Different power tap settings allow the audio output to be adjusted according to the requirements of the installation.

Available power settings include:

• 100V: 30W, 15W and 7.5W
• 70V: 30W, 15W, 7.5W and 3.75W
• Constant impedance: 8 ohm

Designed for Discreet Ceiling Mounting
The frameless ceiling design provides a clean appearance once installed, making the speaker suitable for locations where the audio equipment should remain unobtrusive. The main body is manufactured from PC material, while the base uses ABS for a practical and durable construction.

The mounting hole measures 270 mm in diameter, with an overall speaker size of approximately 286.74 mm in diameter and 213.6 mm in depth. The required mounting depth is approximately 210 mm.

Installation and General Details
The speaker weighs approximately 2.7 kg without packaging and is supplied as a single device with regulatory compliance and safety information. It is designed for operating temperatures from -10 C to 45 C and operating humidity below 90 percent without condensation.

• Main body material: PC
• Base material: ABS
• Mounting hole: 270 mm
• Dimensions: 286.74 mm x 213.6 mm
• Mounting depth: 210 mm
• Net weight: approximately 2.7 kg
• Package dimensions: 350 mm x 350 mm x 343 mm
• Packaged weight: approximately 2.9 kg
• Operating temperature: -10 C to 45 C
• Operating humidity: below 90 percent, non-condensing
• Finish options: white or black

Suitable Applications
This Hikvision ceiling speaker can be used in distributed audio and public address systems where clear speech and background audio are required. Its flexible power options make it suitable for both smaller installations and larger multi-speaker systems.

Common applications include:

• Offices and commercial buildings
• Retail stores and shopping environments
• Schools and educational facilities
• Public address systems
• Reception areas and waiting areas
• Background music installations
• General indoor commercial audio systems

The product part number / SKU is DS-QAZ0630G1, making it easy to identify when ordering, quoting or specifying the Hikvision 30W analog frameless ceiling speaker.

Package Contents
The package includes:

• 1 x Hikvision DS-QAZ0630G1 ceiling speaker
• 1 x Regulatory Compliance and Safety Information document

Specifications

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx-computers.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	DS-QAZ0630G1
Speaker
Impedance	8Ω
Rated Power	30W
Total Harmonic Distortion (THD)	≤1%
Sensitivity(1 m, 1 W)	92dB
Max. Acoustic Pressure	104dB
Frequency Response	80Hz~20kHz(-10dB)
Speaker Unit	1 x 1.0-inch tweeter and 1 x 6.5-inch woofer
Coverage Angle	Conical Coverage: 90degrees
Interface
Audio In	Constant voltage input: 100 V/Constant voltage input: 70 V/Constant impedance input: 8 Ω
Voltage Input	100V: 30W, 15W, 7.5W
	70V : 30W, 15W, 7.5W, 3.75W
	8Ω
General
Material	Main body: PC
	Base: ABS
Mounting Hole Dimension	Ø270 mm (10.63")
Dimension	Ø286.74 mm x 213.6 mm (11.29" x 8.41")
	Approx. 2.7 kg (5.95 lb.)
Package Dimension	350 mm x 350 mm x 343 mm (13.78" x 13.78" x 13.5")
With Package Weight	Approx. 2.9 kg (6.49 lb.)
Packing List	Device x 1
	Regulatory Compliance and Safety Information x 1
Operating Temperature	-10 degreesC to 45 degreesC
Operating Humidity	< 90% (No condensation)
Mounting Depth	210 mm (8.27")
