Overview

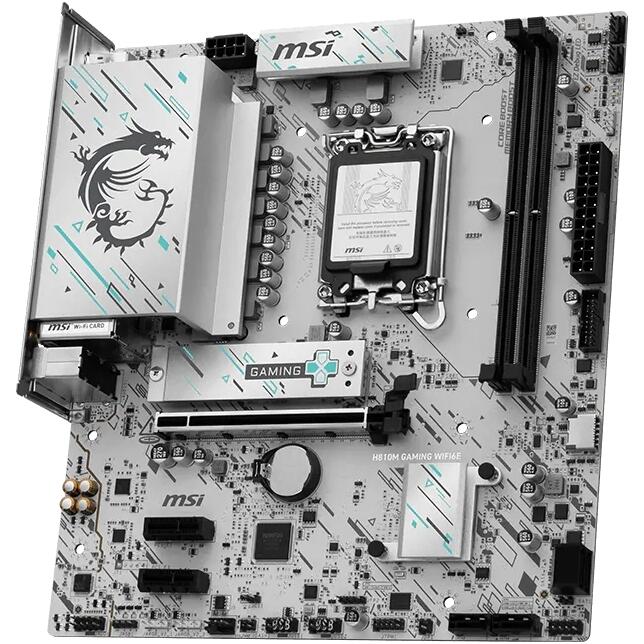

The MSI Intel H810M Gaming WiFi 6E motherboard is built to unlock the full potential of Intel Core Ultra processors on the LGA 1851 socket. Designed for gamers, creators, and AI focused workloads, it combines next generation connectivity, advanced cooling, and intuitive DIY friendly design in a compact micro ATX format. With PCIe 5.0 support, DDR5 memory compatibility, 2.5G LAN, and integrated WiFi 6E, this board delivers the speed and stability required for modern PC builds.

Its cyber inspired aesthetic with teal and black accents on a silver base gives your system a clean, high tech look, while the reinforced PCB and optimized power layout ensure dependable performance under demanding conditions.

Description

The MSI Intel H810M Gaming WiFi 6E motherboard delivers reliable power, high speed connectivity, and smooth DDR5 performance for modern gaming and AI driven systems. Equipped with a 6 plus 1 plus 1 plus 1 digital power design, PCIe 5.0 x16 slot, Gen4 M.2 storage support, and ultra fast USB including 20Gbps Type C, it is engineered for responsive multitasking and immersive gameplay. Integrated 2.5G LAN and WiFi 6E provide low latency networking, while extended heatsinks and intelligent cooling controls help maintain stable temperatures during heavy workloads. Easy installation enhancements such as pre installed I O shield, EZ M.2 Clip II, and EZ PCIe Clip II make building and upgrading simple and stress free.

Features

Built for Intel Core Ultra Performance
Supporting Intel Core Ultra Series 2 processors on the LGA 1851 platform, this motherboard is ready for high performance computing. The 6 plus 1 plus 1 plus 1 P PAK digital power system with 8 pin CPU power connector ensures stable voltage delivery for sustained workloads and gaming sessions.

Optimized PCB engineering enhances bandwidth and signal reliability with:

• 6 layer server grade PCB design
• 2oz thickened copper for improved power stability
• Memory Boost technology for enhanced DDR5 performance
• Support for Intel XMP 3.0 and memory overclocking

With two DDR5 DIMM slots supporting up to 128GB and speeds up to 6400 plus MT per second overclocked, users can expect faster load times, smoother multitasking, and improved AI task handling.

Advanced Cooling for Stable Operation
Thermal efficiency plays a crucial role in maintaining performance. The extended heatsink design increases heat dissipation surface area, while M.2 Shield Frozr helps protect high speed NVMe SSDs from thermal throttling.

Cooling highlights include:

• Extended VRM heatsink covering upper MOS components
• 7W per mK thermal pads and additional choke pads
• Dedicated chipset heatsink
• Intelligent fan management with Frozr AI Cooling

Frozr AI Cooling automatically adjusts fan speeds based on CPU and GPU temperatures, helping balance performance and noise levels. Multiple fan headers support both PWM and DC modes with smooth ramp up control.

Next Generation Expansion and Storage
For graphics and expansion, the motherboard

• 1 x PCIe 5.0 x16 slot with Steel Armor reinforcement
• 2 x PCIe 4.0 x1 slots
• 1 x M.2 slot supporting PCIe 4.0 x4 (2280 and 2260 devices)
• 4 x SATA 6G ports

The PCIe 5.0 slot delivers massive bandwidth for the latest graphics cards, while reinforced soldered connections add durability and reduce signal interference. Lightning Gen 4 M.2 support ensures ultra fast storage performance for quick boot times and faster game loading.

High Speed Connectivity and Networking
Modern systems demand versatile and fast connectivity. This board includes:

• Realtek 8125 2.5Gbps LAN
• Integrated WiFi 6E module with support for 2.4GHz, 5GHz, and 6GHz bands
• Bluetooth 5.3 support
• USB 20Gbps Type C (rear)
• USB 10Gbps Type C (front)
• Multiple USB 5Gbps Type A and USB 2.0 ports

With support for MU MIMO and 160MHz channels, WiFi 6E delivers improved throughput and lower latency for competitive gaming, streaming, and cloud workloads.

Immersive Audio Experience
Powered by the Realtek ALC897 codec, the motherboard supports 7.1 channel high definition audio. An isolated audio structure and high quality capacitors help reduce interference, delivering clearer sound for gaming, voice chat, and media playback.

Audio advantages include:

• Isolated audio signal design
• High quality audio jacks
• De pop protection for clean output

EZ DIY Friendly Design
Building and upgrading is simplified with thoughtful hardware enhancements:

• Pre installed I O shield for easier installation
• EZ M.2 Clip II tool free SSD mounting
• EZ PCIe Clip II for simple GPU removal
• EZ Debug LED and EZ Memory Detection LED for quick troubleshooting
• Color coded headers for easier cable management

The EZ M.2 Clip II allows SSD installation with a simple press down motion, eliminating the need for screws. The reinforced PCIe slot with one finger release mechanism makes removing heavy graphics cards far easier in tight cases.

Smart Software and BIOS Control
The redesigned Click BIOS X provides a clean interface with both EZ Mode and Advanced Mode options. Users can quickly access hardware monitoring, XMP settings, fan tuning, BIOS updates via M Flash, and customizable system profiles.

Through MSI Center, users gain centralized control over system optimization, lighting customization, hardware monitoring, and AI driven tuning. AI Engine automatically adjusts system settings based on application usage, reducing manual tweaking while improving efficiency.

Rear and Internal Connectivity at a Glance
Back panel ports include:

• 1 x HDMI 2.1 supporting up to 4K 60Hz
• 1 x DisplayPort 1.4 supporting up to 4K 60Hz
• USB 20Gbps Type C
• USB 5Gbps Type A
• USB 2.0 ports
• 2.5G LAN port
• WiFi antenna connectors
• Audio jacks

Internal connectors support front panel USB Type C, multiple USB 2.0 and 5Gbps headers, RGB and addressable RGB lighting, TPM 2.0, system fans, and CPU cooling solutions.

Operating System Support
Compatible with Windows 11 64 bit, the MSI Intel H810M Gaming WiFi 6E motherboard is ready for modern gaming, productivity, and AI applications with optimized driver and software integration.

For users building a future ready gaming PC with PCIe 5.0 graphics, DDR5 memory, WiFi 6E networking, and intelligent cooling, this motherboard provides a balanced blend of performance, durability, and user friendly design in a compact form factor.

Specifications

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx-computers.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	H810M GAMING WIFI6E
Chipset	INTEL H810
CPU	Supports Intel Core Ultra Processors (Series 2)
	LGA 1851
Memory	2x DDR5 UDIMM, Maximum Memory Capacity 128GB
	Memory Support DDR5 6400 - 4800 (JEDEC) MT/s
	Max. overclocking frequency:
	1DPC 1R Max speed up to 6400+ MT/s
	1DPC 2R Max speed up to 6400+ MT/s
	Supports Intel POR Speed and JEDEC Speed
	Supports Memory Overclocking and Intel XMP 3.0
	Supports Dual-Controller Dual-Channel mode
	Supports Non-ECC, Un-buffered memory
	Supports CUDIMM
	The DIMM slots on this motherboard only have single-sided latches.
Onboard Graphics	1x HDMI
	Support HDMI 2.1, maximum resolution of 4K 60Hz
	1x DisplayPort
	Support DisplayPort 1.4, maximum resolution of 4K 60Hz
	*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot	1x PCI-E x16 slot
	2x PCI-E x1 slot
	PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
	PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
	PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset)
Audio	Realtek ALC897 Codec
	7.1-Channel High Definition Audio
Storage	1x M.2
	M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
	4x SATA 6G
	*Please refer to the manual for M.2 SSD heatsink restrictions.
USB	4x USB 2.0 (Rear)
	4x USB 2.0 (Front)
	2x USB 5Gbps Type A (Rear)
	2x USB 5Gbps Type A (Front)
	1x USB 10Gbps Type C (Front)
	1x USB 20Gbps Type C (Rear)
LAN	Realtek 8125 2.5Gbps LAN
Internal IO	1x Power Connector(ATX_PWR)
	1x Power Connector(CPU_PWR)
	1x CPU Fan
	2x System Fan
	2x Front Panel (JFP)
	1x Chassis Intrusion (JCI)
	1x Front Audio (JAUD)
	1x Tuning Controller connector(JDASH)
	3x Addressable V2 RGB LED connector (JARGB_V2)
	1x RGB LED connector(JRGB)
	1x TPM pin header(Support TPM 2.0)
	4x USB 2.0 ports
	2x USB 5Gbps Type A ports
	1x USB 10Gbps Type C ports
WIRELESS LAN & BLUETOOTH	Wi-Fi 6E module
	The Wireless module is pre-installed in the M.2 (Key-E) slot
	Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
	Supports 802.11 a/ b/ g/ n/ ac/ ax
	Supports Bluetooth 5.3, FIPS, FISMA
	* Wi-Fi 6E 6GHz may depend on every country's regulations and will be ready in Windows 11.
	** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
LED FEATURE	4x EZ Debug LED
	1x EZ Memory Detection LED
BACK PANEL PORTS	DisplayPort
	USB 2.0
	USB 5Gbps (Type-A)
	2.5G LAN
	Wi-Fi / Bluetooth
	HDMI
	USB 20Gbps (Type-C)
	USB 2.0
	Audio connectors
OPERATING SYSTEM	Support for Windows 11 64-bit
