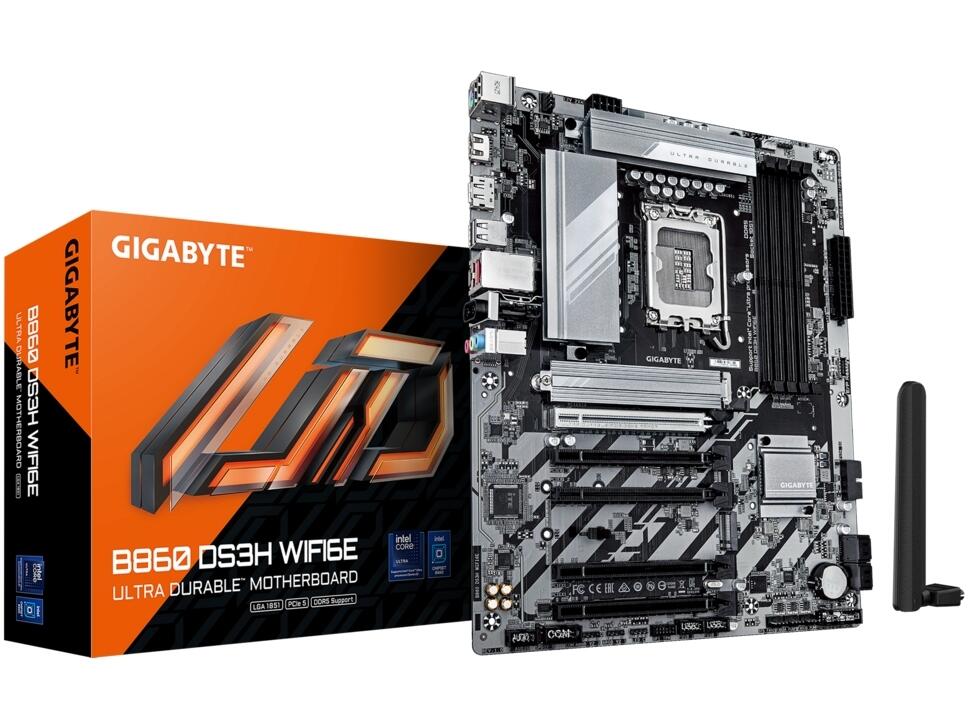

MB-GB860DS3H+W Gigabyte B860 DS3H Wifi Intel Core Ultra Socket LGA 1851 ATX Motherboard

MB-GB860DS3H+W

R 3,445.00

inc. VAT

In Stock

Add To Cart

Rate

Gigabyte B860 DS3H Wifi Intel Core Ultra Socket LGA 1851 ATX Motherboard

Images are for illustrative purposes and actual product may differ.

MB-GB860DS3H+W

Motherboards: Intel LGA1851 Core Ultra

Gigabyte

MB-GB860DS3H+W information and overview

Gigabyte B860 DS3H WiFi Intel Core Ultra Socket LGA 1851 ATX Motherboard, Intel B860 Express Chipset, 4x DDR5 DIMM Memory slots, 1x HDMI Port, 1x DisplayPort, Realtek 2.5GbE LAN Chip, Intel Wi-Fi 6E AX211, Bluetooth 5.3, 1x PCI Express x16 slot supporting PCI-e 5.0 and running at x16, 4 x PCI Express x16 slots supporting PCI-e 4.0 and running at x1, 2x M.2 connector supports up to PCI-e 5.0 x4/x2 SSD, 4x SATA 6Gb/s connectors, USB Type-C Port with USB 3.2 Gen 1 support, USB 3.2 Gen 2 Type-A Port, USB 3.2 Gen 1 Ports, USB 2.0/1.1 Ports, 1x S/PDIF out Header, 1x Serial Port Header, 1x Q-Flash Plus Button, 1x PS/2 Keyboard/Mouse Port, 3x audio jacks

© Respective owners and brand holders. © 2026 ComXpert International CC. The contents has been generated by ComXpert International CC (//www.comx-computers.co.za). All products are sourced locally in South Africa and the warranty is that of the local supplier only. E&OE.

Specifications & more information about MB-GB860DS3H+W, Motherboards: Intel LGA1851 Core Ultra manufactured by Gigabyte

Specifications available as a download

Important notice The information displayed below this paragraph is for reference purposes only. The information may be generic in nature, which covers the entire range of products that fall within this category, and might not apply to this specific model. Please select the correct model as per the above description.

Kindly note that additional software, such as anti-virus and office software, are trial versions and a license will need to be purchased to use the software without limitations.

Overview:

B860 DS3H WIFI6E

Supports Intel Core Ultra processors (Series 2)
Hybrid 8+1+2 phases VRM solution
D5 Bionic Corsa for Infinite Memory Performance
AI Perfdrive : Provides optimal and customized BIOS preset profile for users
WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
EZ-Latch : PCIe x16 Slot with Quick Release Design
Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
Ultra-Fast Storage : 2*M.2 slots, including 1* PCIe 5.0 x4
M.2 Thermal Guard : To Ensure M.2 SSD Performance
Fast Networking : 2.5GbE LAN & Wi-Fi 6E 802.11ax
Extended Connectivity : DisplayPort, HDMI

Features:

Infinite Memory Performance
UD motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.

AI-Driven PCB Design
Redefining PCB Design with AI

HyperTune BIOS
AI-Driven Advanced BIOS Optimization Technology

Durable Performance
GIGABYTE Ultra Durable motherboards built with optimal components inside out provide the prime performance and timeless platform.

Hybrid VRM Design
The best VRM design ever built with the highest quality components. Delivers enhanced system performance with ultimate hardware scalability.

Comprehensive Thermal
UD motherboards come with advanced full-metal thermal design and durable heatsinks to keep your system cool and efficient.

M.2 Thermal Guard
The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.

Future Connectivity
The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage.

2.5GbE LAN
Supercharge your gaming with 2.5GbE LAN Achieve lightning-fast speeds, minimal lag, and unbeatable performance to elevate your gaming setup and dominate the competition.

PCIe 5.0 / 4.0 Hardware Design
Featuring PCIe 5.0 x16 slot and PCIe 5.0 / 4.0 M.2 slot support, GIGABYTE Motherboards are ready to work with the PCIe 5.0 / 4.0 devices to provide the superior performance.

Specifications:

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx-computers.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	MB-GB860DS3H+W
CPU	LGA1851 socket: Support for Intel Core Ultra Processors
CPU	L3 cache varies with CPU
Chipset	Intel B860 Express Chipset
Memory	Support for DDR5 9066(O.C)/8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 5600 MT/s memory modules
	4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
	Dual channel memory architecture
	Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
	Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
	Support for Extreme Memory Profile (XMP) memory modules
	(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Onboard Graphics	Integrated Graphics Processor-Intel HD Graphics support:
	- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
	* Support for HDMI 2.1 version and HDCP 2.3.
	- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
	* Support for DisplayPort 2.1 version.
	(Graphics specifications may vary depending on CPU support.)
Audio	Realtek Audio CODEC
	High Definition Audio
	2/4/5.1/7.1-channel
	* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
	Support for S/PDIF Out
LAN	Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module	Intel Wi-Fi 6E AX211 (PCB rev. 1.0)
	- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
	- BLUETOOTH 5.3
	- Support for 11ax 160MHz wireless standard
	Realtek Wi-Fi 6E RTL8852CE (PCB rev. 1.1)
	- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
	- BLUETOOTH 5.3
	- Support for 11ax 160MHz wireless standard
	(Actual data rate may vary depending on environment and equipment.)
Expansion Slots	CPU:
	- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
	* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
	Chipset:
	- 4 x PCI Express x16 slots, supporting PCIe 4.0 and running at x1 (PCIEX1_1~PCIEX1_4)
Storage Interface	CPU:
	- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
	Chipset:
	- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
	- 4 x SATA 6Gb/s connectors
	RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB	Chipset:
	- 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support
	- 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header
	- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
	- 2 x USB 3.2 Gen 1 ports available through the internal USB header
	- 4 x USB 2.0/1.1 ports on the back panel
	Chipset+USB 2.0 Hub:
	- 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors	1 x 24-pin ATX main power connector
	1 x 8-pin ATX 12V power connector
	1 x CPU fan header
	1 x CPU fan/water cooling pump header
	2 x system fan headers
	2 x system fan/water cooling pump headers
	3 x addressable RGB Gen2 LED strip headers
	1 x RGB LED strip header
	2 x M.2 Socket 3 connectors
	4 x SATA 6Gb/s connectors
	1 x front panel header
	1 x front panel audio header
	1 x S/PDIF Out header
	1 x USB Type-C header, with USB 3.2 Gen 1 support
	1 x USB 3.2 Gen 1 header
	2 x USB 2.0/1.1 headers
	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
	1 x serial port header
	1 x Q-Flash Plus button
	1 x reset jumper
	1 x Clear CMOS jumper
Back Panel Connectors	1 x PS/2 keyboard/mouse port
	1 x HDMI port
	1 x DisplayPort
	1 x USB Type-C port, with USB 3.2 Gen 2x2 support
	1 x USB 3.2 Gen 2 Type-A port (red)
	4 x USB 2.0/1.1 ports
	1 x RJ-45 port
	2 x antenna connectors (2T2R)
	3 x audio jacks
	* Actual support may vary by CPU.
I/O Controller	iTE I/O Controller Chip
H/W Monitoring	Voltage detection
	Temperature detection
	Fan speed detection
	Water cooling flow rate detection
	Fan fail warning
	Fan speed control
	* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS	1 x 256 Mbit flash
	Use of licensed AMI UEFI BIOS
	PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for GIGABYTE Control Center (GCC)
	* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
	Support for Q-Flash
	Support for Q-Flash Plus
	Support for Smart Backup
Bundled Software	Norton Internet Security (OEM version)
Bundled Software	LAN bandwidth management software
Operating System	Support for Windows 11 64-bit
	Support for Windows 10 64-bit
	* The Intel NPU driver is only supported on Windows 11.
Form Factor	ATX Form Factor , 30.5cm x 24.4cm
