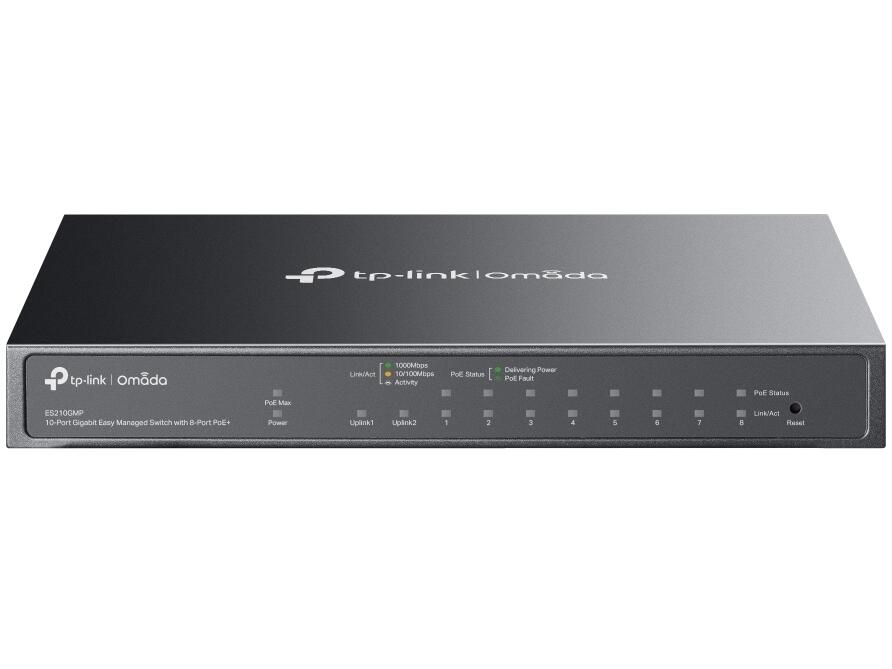

TP-Link Omada 10-Port Gigabit Easy Managed Switch with 8-Port PoE+
The TP-Link Omada ES210GMP is a versatile 10-port gigabit switch designed to deliver reliable performance for small businesses and surveillance networks. With 8 PoE+ ports, a 123W total power budget, and fanless silent operation, this switch ensures stable network connectivity while supporting centralized management through the Omada Cloud platform. Its durable metal casing, flexible mounting options, and advanced traffic management make it ideal for offices, retail setups, and monitoring systems.

Description

The ES210GMP combines simplicity, power, and flexibility in one compact switch. It provides 8 PoE+ ports capable of powering devices like IP cameras and access points, along with 1 gigabit RJ45 port and 1 gigabit SFP/RJ45 combo port. With PoE transmission up to 250 meters, automatic loop prevention, traffic prioritization, and secure traffic separation, it ensures smooth, reliable network performance. The fanless design and easy cloud management via Omada Cloud Essentials make installation and operation effortless.

Features

Key Port Layout and Power Capabilities

• 10 gigabit ports: 8 PoE+ ports, 1 RJ45 port, 1 SFP/RJ45 combo port
• Total PoE power budget of 123W, up to 30W per port
• PoE transmission distance up to 250 meters

Centralized Network Management
Omada Cloud Essentials offers free, cloud-based network management. Users can easily monitor and control switches, access points, and gateways from a single interface. This centralized approach simplifies network maintenance and makes it ideal for small businesses and surveillance setups that require efficiency without complex configurations.

Optimized for Surveillance and Video

• Reliable transmission over long distances for IP cameras and other PoE devices
• Video traffic prioritization for smooth streaming and recording
• Port isolation for secure traffic separation
• PoE auto-recovery to maintain uninterrupted device operation

Versatile Applications

• Surveillance: seamless integration with IP cameras
• Wi-Fi coverage: supports access points for extended wireless networks
• Wired networking: connects PCs, printers, and other non-PoE devices

Durable and Quiet Design
The ES210GMP comes in a robust metal casing with a fanless design for silent operation. It supports both desktop placement and wall mounting, making it a flexible solution for a variety of office and network environments.

Reliable Switching Performance

• 20 Gbps switching capacity for fast and stable connectivity
• Automatic loop prevention to maintain network stability
• Traffic prioritization for critical applications

Specifications

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx-computers.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	NET-TL-ES210GMP
HARDWARE FEATURES
Interface	8 x 10/100/1000 Mbps PoE+ RJ45 Ports (support 802.3at PoE+ and 802.3af PoE)
	1 x 10/100/1000 Mbps RJ45 Port
	1 x Gigabit SFP/RJ45 Combo Port
	Auto-Negotiation/Auto MDI/MDIX
Fan Quantity	Fanless
Installation	Desktop
	Wall Mount
Physical Security Lock	√
Power Supply	DC Power Adapter (Output: 53.5 VDC/ 2.43 A)
PoE Ports (RJ45)	Standard: 802.3af PoE and 802.3at PoE+ compliant
	PoE Ports: 8 ports
	PoE Budget: 123W available for all PoE+ ports, 30W max per port
	PoE Auto Recovery
	Up to 250m PoE transmission distance
Dimensions ( W x D x H )	8.2 x 4.9 x 1.0 in (209 x 126 x 26 mm)
Surge Protection	±6kV
PERFORMANCE
Switching Capacity	20 Gbps
Packet Forwarding Rate	14.88 Mpps
MAC Address Table	8K
Packet Buffer Memory	4 Mbit
Jumbo Frame	15 KB
SOFTWARE FEATURES
Quality of Service	Port-based/802.1p/DSCP QoS
	8 Priority Queues
	Priority Schedule Mode
	- WRR (Weighted Round Robin)
	Queue Weight Config
	Bandwidth Control
	- Port-Based Rating Limit
	Storm Control
	- Multiple Control Modes (kbps/pps)
	- Broadcast/Multicast/Unknown-Unicast Control?
L2 Features	Static Link Aggregation
	Loop Prevention / Loopback Detection
	Flow Control
	- 802.3x Flow Control
	Mirroring
	- Port Mirroring
	- One-to-One
	- Many-to-One
	- Ingress/Egress/Both
	Port Statistics
	- Port Mirror Status
	- Traffic Statistics
	802.1ab LLDP
L2 Multicast	IGMP Snooping
	- IGMP v1/v2/v3 Snooping
	- Fast Leave
VLAN	MTU VLAN
	Port-Based VLAN
	802.1Q Tag VLAN
	- Max 32 VLAN Groups
	- 4K VID
Transmission Method	Store-And-Forward
Management Features
Omada App	Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management	Omada Cloud-Based Controller
	Omada Hardware Controller
	Omada Software Controller
Cloud Access	Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning	Yes. Requires the use of Omada Cloud-Based Controller
Management Features	Web-based GUI
	DHCP Client
	Cable Diagnostics
	Automatic Device Discovery
	Batch Configuration
	Batch Firmware Upgrading
	Unified Configuration
OTHERS
Certification	FCC, CE, RoHS
Package Content	ES210GMP
	Power Adapter
	Installation Guide
	Rubber Feet
Environment	Operating Temperature: 0degreesC~40degreesC (32degreesF~104degreesF)
	Storage Temperature: -40degreesC~70degreesC (-40degreesF~158degreesF)
	Operating Humidity: 10%~90% non-condensing
	Storage Humidity: 5%~90% non-condensing
