| HARDWARE FEATURES |
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x |
| Interface | 16 x 10/100/1000 Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) |
| 2 x Gigabit SFP Slots |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) |
| 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) |
| 1000BASE-X: MMF, SMF |
| Fan Quantity | 1 |
| Power Supply | 100-240V AC, 50/60Hz |
| PoE Ports (RJ45) | Standard: 802.3at/af compliant |
| PoE+ Ports: 16 Ports |
| PoE Power Budget: 150 W |
| Dimensions ( W x D x H ) | 17.3 x 7.1 x 1.7 in. (440 x 180 x 44 mm) |
| Mounting | Rack Mountable |
| Max Power Consumption | 181.4 W (110 V/60 Hz) (with 150 W PD connected) |
| 178.3 W (220 V/50 Hz) (with 150 W PD connected) |
| Max Heat Dissipation | 619.06 BTU/hr (110 V/60 Hz) (with 150 W PD connected) |
| 608.52 BTU/hr (220 V/50 Hz) (with 150 W PD connected) |
| PERFORMANCE |
| Switching Capacity | 36 Gbps |
| Packet Forwarding Rate | 26.78 Mpps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 4.1 Mbit |
| Jumbo Frame | 9 KB |
| SOFTWARE FEATURES |
| Quality of Service | 802.1p CoS/DSCP priority |
| 8 priority queues |
| Priority Schedule Mode |
| - SP (Strict Priority) |
| - WRR (Weighted Round Robin) |
| Queue Weight Config |
| Bandwidth Control |
| - Port/Flow based Rating Limit |
| Smoother Performance |
| Storm Control |
| - Multiple Control Modes(kbps/ratio) |
| - Broadcast/Multicast/Unknown-Unicast Control |
| L2 and L2+ Features | 16 IP Interfaces |
| - Support IPv4/IPv6 Interface |
| Static Routing |
| - 32 IPv4/IPv6 Static Routes |
| DHCP Server |
| DHCP Relay |
| - DHCP Interface Relay |
| - DHCP VLAN Relay |
| DHCP L2 Relay |
| Static ARP |
| Proxy ARP |
| Gratuitous ARP |
| Link Aggregation |
| - Static link aggregation |
| - 802.3ad LACP |
| - Up to 8 aggregation groups and up to 8 ports |
| per group |
| Spanning Tree Protocol |
| - 802.1D STP |
| - 802.1w RSTP |
| - 802.1s MSTP |
| - STP Security: TC Protect, BPDU Filter/Protect |
| Root Protect |
| Loopback Detection |
| Flow Control |
| - 802.3x Flow Control |
| Mirroring |
| - Port Mirroring |
| - CPU Mirroring |
| - One-to-One |
| - Many-to-One |
| - Flow-Based |
| - Ingress/Egress/Both |
| Device Link Detect Protocol (DLDP) |
| 802.1ab LLDP/ LLDP-MED |
| Advanced Features | Automatic Device Discovery |
| Batch Configuration |
| Batch Firmware Upgrading |
| Intelligent Network Monitoring |
| Abnormal Event Warnings |
| Unified Configuration |
| Reboot Schedule |
| VLAN | VLAN Group |
| - Max. 4K VLAN Groups |
| 802.1Q tag VLAN |
| MAC VLAN: 12 Entries |
| Protocol VLAN |
| GVRP |
| Voice VLAN |
| Access Control List | Support up to 230 entries |
| Time-Range |
| - Time Slice |
| - Week Time-Range |
| - Absolute Time-Range |
| - Holiday |
| Time-based ACL |
| MAC ACL |
| - Source MAC |
| - Destination MAC |
| - VLAN ID |
| - User Priority |
| - Ether Type |
| IP ACL |
| - Source IP |
| - Destination IP |
| - IP Protocol |
| - TCP Flag |
| - TCP/UDP Source Port |
| - TCP/UDP Destination Port |
| - DSCP/IP TOS |
| IPv6 ACL |
| Combined ACL |
| Rule Operation |
| - Permit/Deny |
| Policy Action |
| - Mirror |
| - Rate Limit |
| - Redirect |
| - QoS Remark |
| ACL Rules Binding |
| - Port Binding |
| - VLAN Binding |
| Actions for flows |
| - Mirror (to supported interface) |
| - Redirect (to supported interface) |
| - Rate Limit |
| - QoS Remark |
| Security | AAA |
| 802.1X |
| - Port based authentication |
| - MAC (Host) based authentication |
| - Authentication Method includes PAP/EAP-MD5 |
| - MAB |
| - Guest VLAN |
| - Support Radius authentication and |
| accountability |
| IP/IPv6-MAC Binding |
| - 512 Binding Entries |
| - DHCP Snooping |
| - DHCPv6 Snooping |
| - ARP Inspection |
| - ND Detection |
| IP Source Guard |
| - 253 Entries |
| - Source IP+Source MAC |
| IPv6 Source Guard |
| - 183 Entries |
| - Source IPv6 Address+Source MAC |
| DoS Defend |
| Static/Dynamic/Permanent Port Security |
| - Up to 64 MAC addresses per port |
| Broadcast/Multicast/Unicast Storm Control |
| - kbps/ratio control mode |
| Port Isolation |
| Secure web management through HTTPS with |
| SSLv3/TLS 1.2 |
| Secure Command Line Interface (CLI) |
| management with SSHv1/SSHv2 |
| IP/Port/MAC based access control |
| IPv6 | IPv6 Static Routing and ACL |
| IPv6 Dual IPv4/IPv6 |
| IPv6 Interface |
| Multicast Listener Discovery (MLD) Snooping |
| IPv6 neighbor discovery (ND) |
| Path maximum transmission unit (MTU) discovery |
| Internet Control Message Protocol (ICMP) |
| version 6 |
| TCPv6/UDPv6 |
| IPv6 applications |
| - DHCPv6 Client |
| - Ping6 |
| - Tracert6 |
| - Telnet(v6) |
| - IPv6 SNMP |
| - IPv6 SSH |
| - IPv6 SSL |
| - Http/Https |
| - IPv6 TFTP |
| MIBs | MIB II (RFC1213) |
| Bridge MIB (RFC1493) |
| P/Q-Bridge MIB (RFC2674) |
| Radius Accounting Client MIB (RFC2620) |
| Radius Authentication Client MIB (RFC2618) |
| Remote Ping, Traceroute MIB (RFC2925) |
| Support TP-Link private MIBs |
| RMON MIB(RFC1757, rmon 1,2,3,9) |
| MANAGEMENT |
| Omada App | Yes, through |
| Omada Cloud-Based Controller |
| OC300 |
| OC200 |
| Omada Software Controller |
| Centralized Management | Omada Cloud-Based Controller |
| Omada Hardware Controller OC300 |
| Omada Hardware Controller OC200 |
| Omada Software Controller |
| Cloud Access | Yes, through |
| Omada Cloud-Based Controller |
| OC300 |
| OC200 |
| Omada Software Controller |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller |
| Management Features | Web-based GUI |
| Command Line Interface (CLI) through telnet |
| SNMPv1/v2c/v3 |
| SNMP Trap/Inform |
| RMON (1,2,3,9 groups) |
| SDM Template |
| DHCP/BOOTP Client |
| Dual Image, Dual Configuration |
| CPU Monitoring |
| Cable Diagnostics |
| EEE |
| SNTP |
| System Log |
| OTHERS |
| Certification | CE, FCC, RoHS |

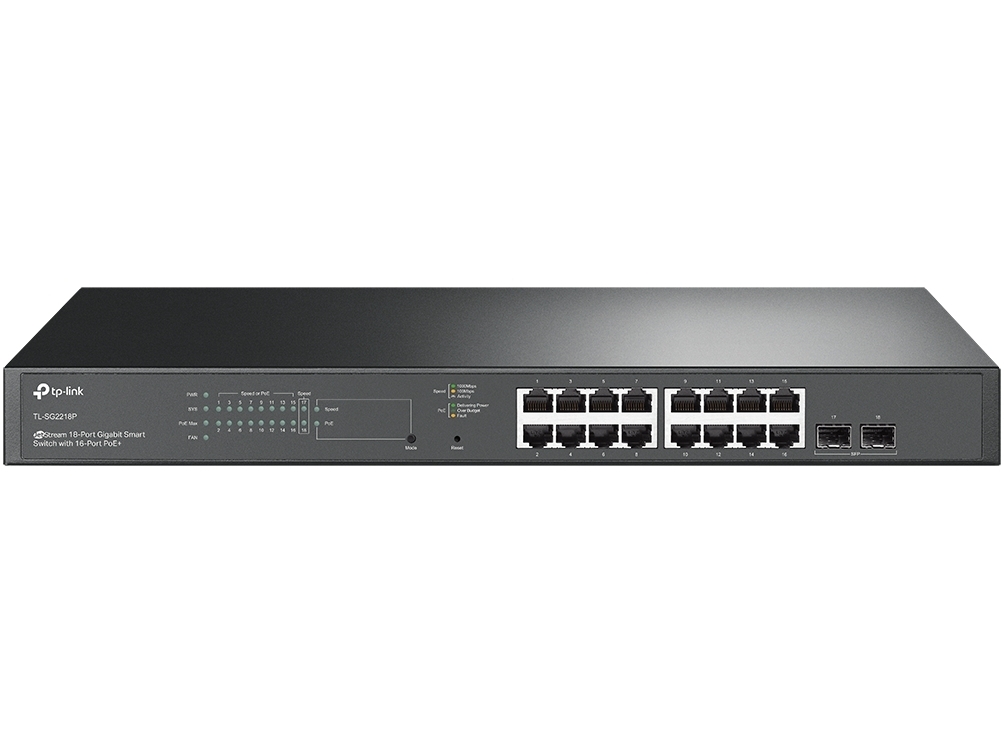

| Package Contents | TL-SG2218P |
| Power Cord |
| Installation Guide |
| Rackmount Kit |
| Rubber Feet |
| System Requirements | Microsoft Windows XP, Vista or Windows 7 / 8 / 10 / 11, MAC OS, NetWare , UNIX or Linux. |
| Environment | Operating Temperature: 0-50 °C (32-122 °F) |
| Storage Temperature: -40-70 °C (-40-158 °F) |
| Operating Humidity: 10-90% RH non-condensing |
| Storage Humidity: 5-90% RH non-condensing |
