5PX2200iRT3UG2 Eaton 5PX 1500i RT2U G2 1500VA 1500W line-interactive UPS

5PX2200iRT3UG2

R 22,120.00

inc. VAT

In Stock

⚠ Stock is expected but not confirmed - please wait for an email confirming before paying.

Add To Cart

Rate

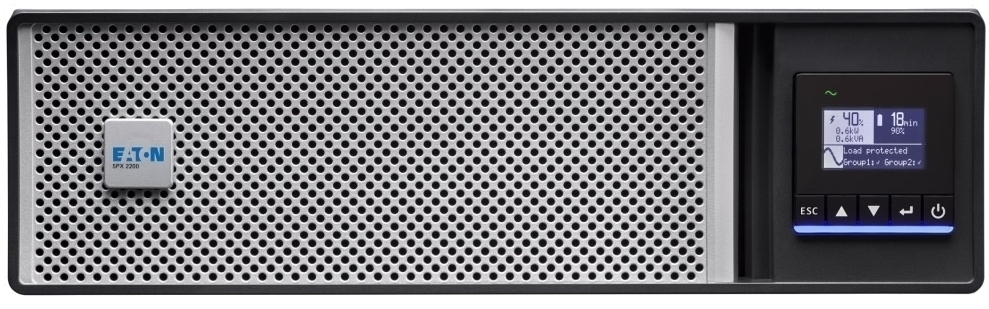

Eaton 5PX 1500i RT2U G2 1500VA 1500W line-interactive UPS

Images are for illustrative purposes and actual product may differ.

5PX2200iRT3UG2

UPS 220V / 230V uninterrupted power supplies

Eaton

5PX2200iRT3UG2 information and overview

Eaton 5PX 2200i RT3u G2 2200VA 2200W line-interactive UPS, C20 Input, 8x C13 Output, 2x C19 Output, Rack / Tower 3U, 6 batteries, Sine Wave Output Waveform

Availability will be confirmed by email.

Good news! We found a possible cheaper supplier here

Specifications & more information about 5PX2200iRT3UG2, UPS 220V / 230V uninterrupted power supplies manufactured by Eaton

Specifications & downloads View specification Printable PDF

Product information notice: Some specifications may describe a broader product range and may not apply to this exact model. Use the product summary above as the primary model reference. Bundled software may be trial software and can require a separate licence.

Overview:

5PX2200IRT3UG2
Eaton 5PX Gen2 UPS, 2200 VA, 2200 W, Input: C20, Output: (8) C13, (2) C19, Rack/tower, 3U

Specifications:

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx-computers.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	5PX2200iRT3UG2
General specifications
Product Name	Eaton 5PX Gen2 UPS
Catalog Number	5PX2200IRT3UG2
Product Length/Depth	483 mm
Product Height	129 mm
Product Width	438 mm
Product Weight	27.5 kg
Compliances	IEC/EN 62040-1
	IEC/EN 62040-2
	IEC/EN 62040-3
	RoHS Compliant
	REACH
	UL 1778
	CSA 22.2
Certifications	CE
	cTUVus
	EAC
	Cm
	UKCA
	Ukr
	ENERGY STAR certified
UPC	743172104762
Model Code	Eaton 5PX 2200i RT3U G2
Product specifications
Secondary frequency - max	60 Hz
Output waveform	Sine wave
Max number of battery packs	4
Wattage	2200 W
Output power factor	1
Form factor	Rack/tower
Includes network card	No
Input connection	C20
Input voltage - min	150 V
Output voltage - max	240 V
Secondary frequency - min	50 Hz
Software compatibility	Eaton Intelligent Power Manager, Eaton Intelligent Power Protector
Battery replacement	User replaceable
Battery type	Lead-acid maintenance-free (replaceable)
Efficiency	98
Special features	Automatic Voltage Regulation (AVR)
	Energy efficient, reduce energy and cooling costs
	Delivers clean sinewave output
	Provides more real power (watts) to protect more equipment with a Unity power factor (VA=W)
	LCD display for real-time status and measurements
	Long backup time with up to 4 optional EBM
	Meter energy consumption (down to the managed outlet groups)
	Versatile product for rack or tower installation
	1 slot for optional com card (Network management card, Relay card or Network and Industrial card)
	Compatible with Virtual environments (VMware, Hyper-V, Citrix Xen, Redhat)
	1 USB port + 1 serial port
Construction type	482.6 mm (19 inch) device
Output voltage - min	200 V
Color	Black/silver
Extended battery capability	Yes
Output voltage range	230 V (+6%/-10%)
Topology	Line-interactive
Runtime at half load	10 min
Input nominal voltage	230V default (200/208/220/230/240V)
Input frequency range	47-70 Hz (50 Hz system), 56.5-70 Hz (60 Hz system), 40 Hz in low sensitivity mode
Input voltage - max	294 V
Voltage type	AC
Phase (output)	1
Battery management	ABM & Temperature compensated charging method (user selectable), Automatic battery test, deep discharge protection, automatic recognition of external battery units
Auto shutdown function	Yes
Number of Outputs C13	8
Number of Outputs C19	2
VA rating	2200 VA
Potential free switch contact	Yes
Receptacle	(8) C13, (2) C19
Phase (input)	1
Package contents	Input cable
	Rack-mounting kit
	(2) Supports for tower mounting
	Cable locking system
	USB cable
	Serial cable
	(2) IEC-IEC cables
	Quickstart guide
	Safety instructions
Noise level	<40 dB at 1 meter
Feed type	1
User interface	Multilingual graphical LCD display
Battery quantity	6
Rack size	3U
Voltage	230V
Input cord length	1.8m
Temperature range	0° to 40°C (32° to 104°F), batteries recommended max. 25°C (77°F)
Communication	USB port (HID compliant)
	Serial port (RS232)
	Mini-terminal block for remote On/Off and Remote Power Off
	Mini-terminal block for output relay
	Dry contacts (3 outputs, 1 input, optocoupler, DB9)
Relative humidity	0-90% non-condensing
Rack mounting kit	Yes
Output frequency	50/60 Hz
Type of interface	Other
Primary frequency - min	47 Hz
Battery rating	12 V / 7 Ah
Type	UPS
Output nominal voltage	230V default (200/208/220/230/240V)
Expansion slots	One slot for optional communication card
Input voltage range	160-294 V (adjustable to 150 V-294 V)
Nominal frequency	50-60 Hz
Primary frequency - max	70 Hz
Altitude	3000 m
