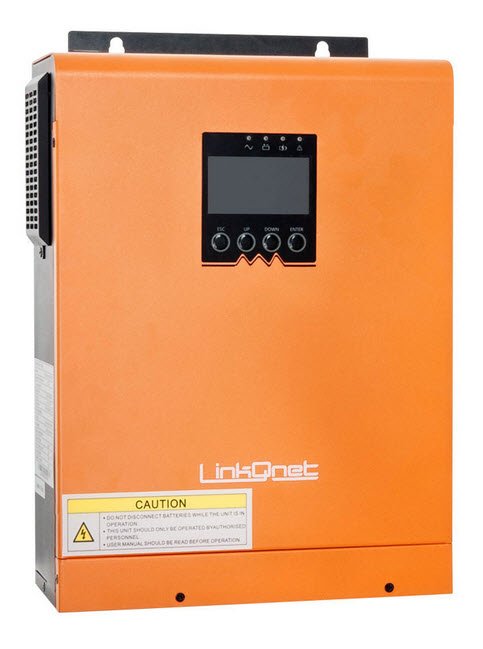

UPS-INV-2.4KVA-V-TG

Features:

• Pure sinewave inverter with 2400W RMS power (3000VA)
• Built-in 50A PWM solar charge controller
• Configurable input voltage range for home appliances or UPS transfer (<10ms)
• Configurable battery charging current based on application
• Configurable AC/solar charger priority
• Can be wired to be powered from a standard South African 15A plug socket
• Compatible with mains or generator power
• Auto restart when AC recovers or PV power is available
• Overload / over temperature / short circuit protection, variable speed low noise fans
• Smart battery charger design for optimised battery performance
• Cold start function

Budget Inverter Solution:
The LinkQnet 3024 Value 24V DC to 230V AC Inverter solution includes a 40A AC-DC charger and 50A DC-DC PWM 1200W Solar charger for a combined total charging capability of 90A and 2400W DC-AC pure sinewave inverter in one compact solution. It is designed for fixed and mains socket AC sources by limiting the power delivery to 2400W while charging at 1000W to draw a total of less than 15 Amps from the AC plug.

Multiple Deployment Options:
With no PV solar panels attached while connected to the utility power grid and battery storage, the unit can function as a power backup source during load shedding or unforeseen utility power failures. The unit can also operate as a hybrid solar storage solution connected to the utility power grid or a generator to assist with charging the batteries when solar levels are low or as an off-grid pure solar storage solution with only the solar panels connected to charge the batteries. The internal electronics and AC relay arrangement make it physically impossible for the inverter to feed power towards the grid or generator.

Solid and Reliable:
The LinkQnet range of multi-functional inverters have been designed to tolerate African power grid and environmental conditions and are intended to be installed by a qualified electrician or certified solar solution provider in accordance with SANS 10142-1. If you are not qualified then Linkqage will always direct you to one of our many registered installers.

Battery Options:
The LinkQnet 3024 Value can support lead acid (Flooded, VRLA AGM or GEL), Lithium Iron Phosphate battery (LiFePO4) or Super Capacitors for storage.

Specifications:

©2026 Respective owners and brand holders. This table has been carefully researched and generated by ComXpert International CC (//www.comx-computers.co.za), however, errors and omissions may occur. Only references to South Africa apply. All products are sourced in South Africa from the official suppliers and the warranty is that of the local supplier. E&OE. This table and our site's content may be used on condition that this notice and link remains intact and unaltered.
Specifications
Product Code	UPS-INV-2.4KVA-V-TG
INSTALLATION
PEAK POWER	3000VA (6000VA surge for max 2 seconds)
RMS POWER	2400W (PF=0.8)
AC VOLTAGE	230V
AC WAVEFORM	Pure Sinewave
EFFICIENCY (Peak)	0.93
DC VOLTAGE	24V
TRANSFER TOLERANCE	185V to 264V (UPS Mode) / 154V to 264V (Appliance Mode)
TRANSFER TIME	<10ms (UPS Mode) / <20ms (Appliance Mode)
CHARGING
AC CHARGE	40A (Adjustable)
SCC TYPE	PWM
SCC OPERATING VOLTAGE	36V - 72V DC
MAX PV OC VOLTAGE	85V DC
MAX SCC POWER	1200W
MAX SCC CHARGE	50A
MAX COMBINED CHARGE	90A (Adjustable)
SCC EFFICIENCY	0.95
OPTIONS
STANDBY POWER CONSUMPTION	2W
PARALLEL CAPABLE	No
COMMUNICATION	RS-232 / USB-A
BATTERY TYPES	Flooded, AGM, GEL, Li-Ion, Super Capacitor, Custom
BMS SUPPORT	No - Third party solution can be used
PHYSICAL
WEIGHT	4.20kg
DIMENSIONS (D x W x H)	100 x 240 x 330mm
OPERATING HUMIDITY	5% to 95% Relative Humidity (non- condensing)
OPERATING TEMPERATURE	0°C to 40°C (Room Temperature)
INSTALLATION
INSTALLATION ENVIRONMENT	Indoor environment with no exposure to direct external air in coastal regions
INPUT ISOLATOR	Not needed if connected to a SANS compliant 15A wall socket with EL protection
INPUT CIRCUIT BREAKER	Not needed if connected to a SANS compliant 15A wall socket with EL protection
OUTPUT CIRCUIT BREAKER	Dual Pole 10A-15A (to be purchased). Or multi-plug with thermal overload.
BYPASS SWITCH	25A-63A dual pole, double throw with centre o&#-1280; (to be purchased)
OUTPUT ISOLATOR	25A-63A dual pole (to be purchased)
EARTH LEAKAGE RELAY	40A-63A with 30mA break leakage for plug circuits (to be purchased)
INSTALLATION COMPETENCY	Not consumer installable. Needs to be wired into building electrical system. Requires qualified electrician with CoC for municipal and insurance compliance.
